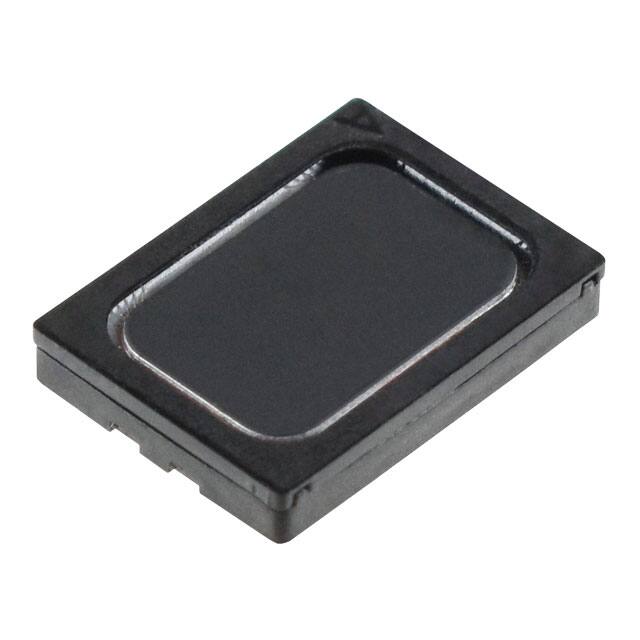

CMS-151103-16SP

Teknik Özellikler

Maks. Oturma Yüksekliği

0.118 3.00mm

Efficiency Testing

700mW/100mm

RoHS Durumu

RoHS Compliant

Port Location

Top

Material Cone

Polyetheretherketone (PEEK)

Power Max

1W

Nem Hassasiyeti (MSL)

Not Applicable

Efficiency Type

Sound Pressure Level (SPL)

Power Rated

700mW

Fabrika Tedarik Süresi

5 Weeks

Boyut / Ölçü

0.591Lx0.433W 15.00mmx11.00mm

Seri

CMS

Parça Durumu

Active

Distortion Rating

15% Max @ 800Hz ~ 1.2KHz, 0.1M, 2.05V; 10% Max @ 1.201Hz ~ 5KHz, 0.1M, 2.05V

Frequency Range

100Hz~20kHz

Material Magnet

Nd-Fe-B

Shape

Rectangular

Efficiency Dba

93.00

Empedans

6Ohm

Terminal

Solder Pads

Tip

General Purpose

Çalışma Sıcaklığı

-20°C~70°C

Frequencyselfresonant

600Hz
