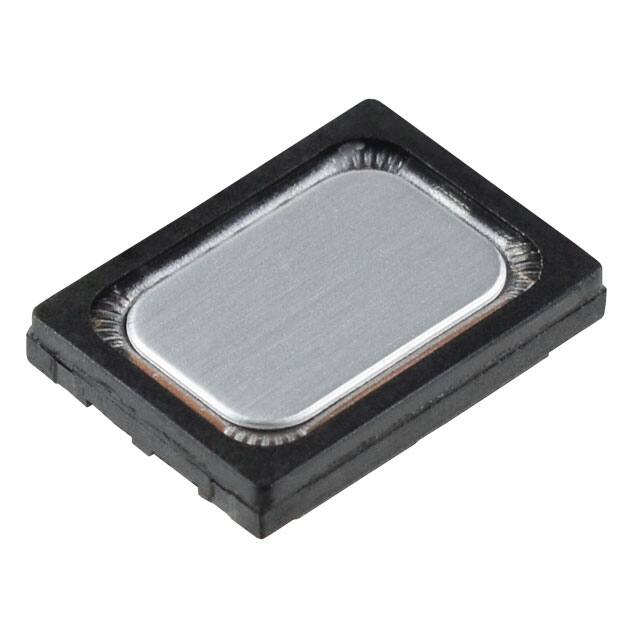

CMS-151103-088SP

Teknik Özellikler

Empedans

8Ohm

Tip

General Purpose

Terminal

Solder Pads

Frequency Range

100Hz~20kHz

Material Magnet

Nd-Fe-B

Shape

Rectangular

Efficiency Dba

90.00

Distortion Rating

15% Max @ 800Hz ~ 1.2KHz, 0.1M, 2.37V; 10% Max @ 1.201Hz ~ 5KHz, 0.1M, 2.37V

Frequencyselfresonant

550Hz

Çalışma Sıcaklığı

-20°C~70°C

Nem Hassasiyeti (MSL)

Not Applicable

Material Cone

Polyetheretherketone (PEEK)

Power Max

1W

Efficiency Testing

700mW/100mm

Maks. Oturma Yüksekliği

0.118 3.00mm

RoHS Durumu

RoHS Compliant

Port Location

Top

Seri

CMS

Boyut / Ölçü

0.591Lx0.433W 15.00mmx11.00mm

Parça Durumu

Active

Fabrika Tedarik Süresi

5 Weeks

Efficiency Type

Sound Pressure Level (SPL)

Power Rated

700mW
