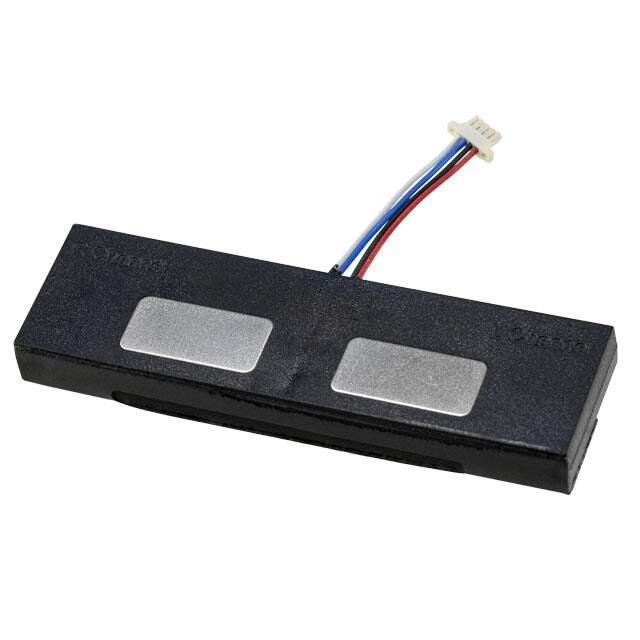

CES-57175-16L020

Teknik Özellikler

Seri

CES

Distortion Rating

10% Max @ 2KHz, 0.1M, 1W

Shape

Rectangular

Efficiency Type

Sound Pressure Level (SPL)

Frequency Range

0Hz~20kHz

Empedans

6Ohm

Efficiency Dba

89.00

Efficiency Testing

1W/100mm

Material Cone

Polyetheretherketone (PEEK)

Parça Durumu

Obsolete

RoHS Durumu

RoHS Compliant

Terminal

Wire Leads

Power Max

2W

Port Location

Top

Boyut / Ölçü

2.264Lx0.669W 57.50mmx17.00mm

Power Rated

1W

Frequencyselfresonant

850Hz

Maks. Oturma Yüksekliği

0.209 5.30mm

Çalışma Sıcaklığı

-30°C~70°C

Tip

General Purpose

Material Magnet

Nd-Fe-B

Nem Hassasiyeti (MSL)

Not Applicable
