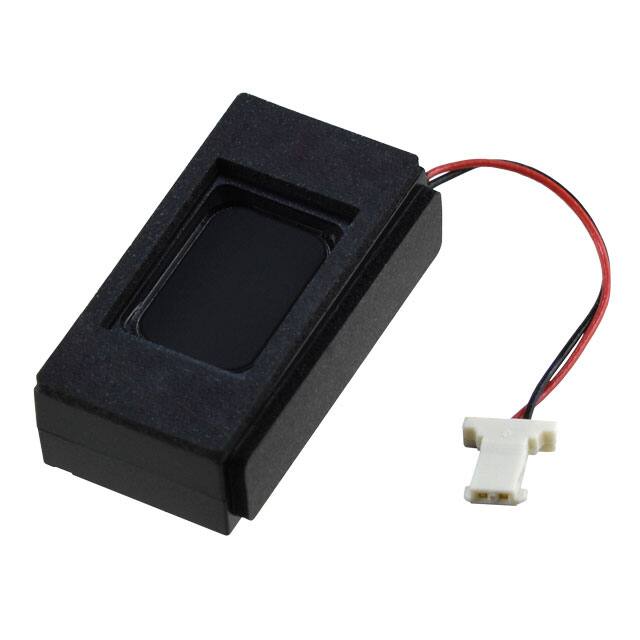

CES-26138-16L030

Teknik Özellikler

Seri

CES

Efficiency Type

Sound Pressure Level (SPL)

Frequency Range

500Hz~20kHz

Efficiency Dba

95.00

Empedans

6Ohm

Distortion Rating

10% Max @ 2KHz, 0.1M, 1.2W

Shape

Rectangular

Parça Durumu

Active

Material Cone

Polyetheretherketone (PEEK)

Fabrika Tedarik Süresi

5 Weeks

Efficiency Testing

1.2W/100mm

Terminal

Wire Leads

RoHS Durumu

RoHS Compliant

Power Max

1.5W

Boyut / Ölçü

1.024Lx0.512W 26.00mmx13.00mm

Port Location

Top

Frequencyselfresonant

1kHz

Power Rated

1.2W

Çalışma Sıcaklığı

-20°C~70°C

Tip

General Purpose

Maks. Oturma Yüksekliği

0.315 8.00mm

Nem Hassasiyeti (MSL)

Not Applicable

Material Magnet

Nd-Fe-B
