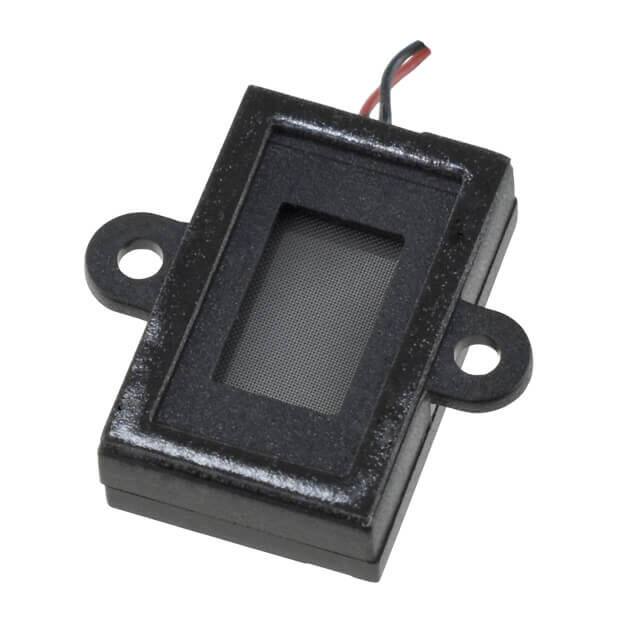

CES-20134-088PM

Teknik Özellikler

Material Magnet

Nd-Fe-B

Nem Hassasiyeti (MSL)

Not Applicable

Tip

General Purpose

Çalışma Sıcaklığı

-20°C~70°C

Maks. Oturma Yüksekliği

0.192 4.87mm

Frequencyselfresonant

1.3kHz

Power Rated

800mW

Power Max

1W

Port Location

Top

Boyut / Ölçü

0.787Lx0.633W 20.00mmx16.09mm

Terminal

Wire Leads

RoHS Durumu

RoHS Compliant

Material Cone

Polyetheretherketone (PEEK)

Parça Durumu

Active

Efficiency Testing

800mW/100mm

Fabrika Tedarik Süresi

5 Weeks

Empedans

8Ohm

Efficiency Dba

91.00

Frequency Range

500Hz~20kHz

Efficiency Type

Sound Pressure Level (SPL)

Distortion Rating

10% Max @ 2KHz, 0.1M, 0.8W

Shape

Rectangular

Seri

CES
