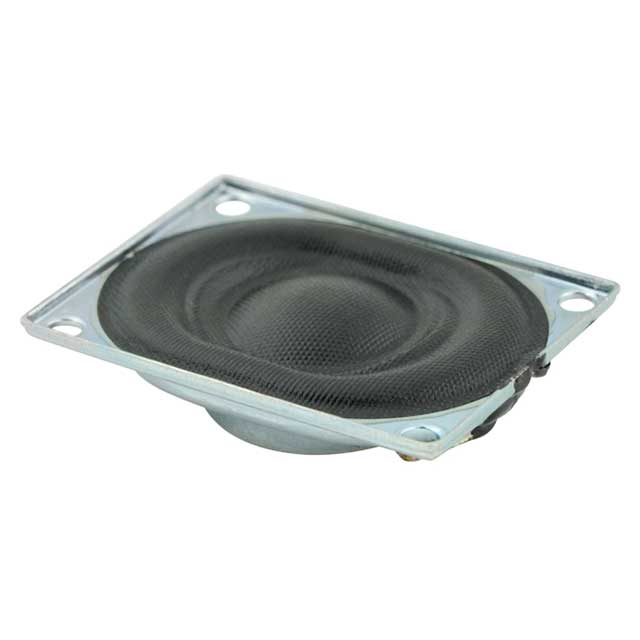

CDS-27208

Teknik Özellikler

Device Construction

Built-in device fixed built-in technique

Frequency Range

680Hz~20kHz

Type Of Control Element

Push button

Type Of Electrical Connection Of Main Circuit

Rail connection

Rated Permanent Current Iu

2500

RoHS Durumu

RoHS Compliant

Maks. Oturma Yüksekliği

0.232 5.90mm

Yayın Yılı

2016

Ambalaj

Tray

Material Cone

Cloth

Efficiency Type

Sound Pressure Level (SPL)

Nem Hassasiyeti (MSL)

1 (Unlimited)

With Integrated Under Voltage Release

No

Degree Of Protection Ip

IP20

Seri

CDS

Yükseklik

6.1mm

Frequencyselfresonant

850Hz

Fabrika Tedarik Süresi

14 Weeks

Material Magnet

Nd-Fe-B

Efficiency Dba

95.00

Shape

Rectangular

Kurşunsuz

Lead Free

Number Of Auxiliary Contacts As Normally Open Contact

0

Number Of Auxiliary Contacts As Normally Closed Contact

0

Adjustment Range Undelayed Shortcircuit Release

5000 - 30000

Tip

General Purpose

Max Power Dissipation

2.5W

Power Rated

2W

Power Rating

2W

Technology

Magnetic

Efficiency Testing

1W/100mm

Empedans

8Ohm

Terminal

Solder Pads

Port Location

Top

Power Max

2.5W

Overload Release Current Setting

1250 - 2500

Boyut / Ölçü

1.063Lx0.787W 27.00mmx20.00mm

Parça Durumu

Active
