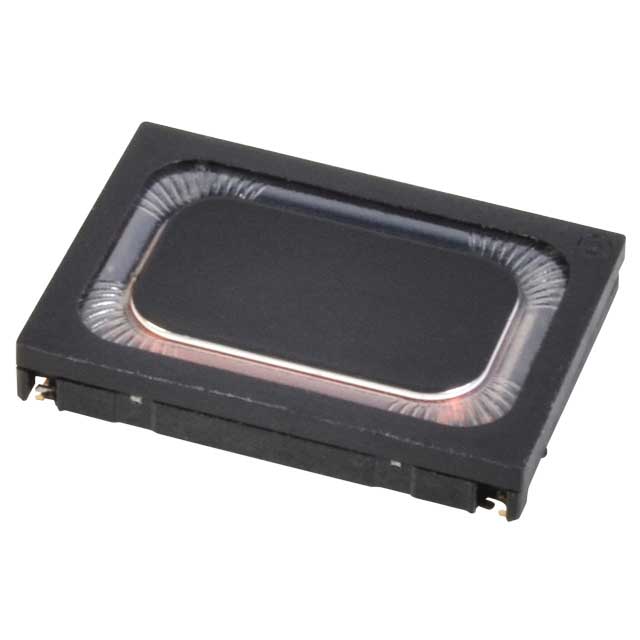

CDS-18138A

Teknik Özellikler

Empedans

8Ohm

Terminal

Spring Type

Port Location

Top

Power Max

1W

Boyut / Ölçü

0.709Lx0.512W 18.00mmx13.00mm

Parça Durumu

Obsolete

Efficiency Dba

89.00

Material Magnet

Nd-Fe-B

Shape

Rectangular

Kurşunsuz

Lead Free

Tip

General Purpose

Max Power Dissipation

1W

Power Rated

700mW

Power Rating

700mW

Technology

Magnetic

Efficiency Testing

700mW/100mm

Ambalaj

Tray

Material Cone

Polyester, Polyethylene Terephthalate (PET)

Efficiency Type

Sound Pressure Level (SPL)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

CDS

Yükseklik

2.6mm

Fabrika Tedarik Süresi

8 Weeks

Frequencyselfresonant

375Hz

Frequency Range

300Hz~20kHz

RoHS Durumu

RoHS Compliant

Maks. Oturma Yüksekliği

0.098 2.50mm

Yayın Yılı

2016
