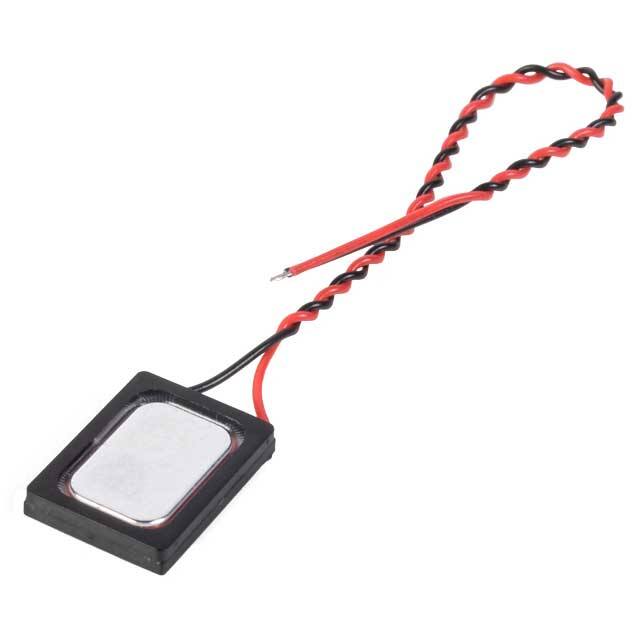

CDS-15118B-L100

Teknik Özellikler

Terminal

Wire Leads

Input Trigger Currentnom

10

Empedans

8Ohms

Port Location

Top

Power Max

1W

Parça Durumu

Obsolete

Boyut / Ölçü

0.591Lx0.433W 15.00mmx11.00mm

Operating Temperaturemin

-40

Material Magnet

Nd-Fe-B

Efficiency Dba

86.00

Kurşunsuz

Lead Free

Forward Currentmax

.05

Shape

Rectangular

Peak Offstate Voltagemin

450

Tip

General Purpose

Power Rated

700mW

Max Power Dissipation

1W

Genişlik

11mm

Efficiency Testing

500mW/100mm

Technology

Magnetic

Additional Feature

UL RECOGNIZED

Power Rating

700mW

Material Cone

Polyester, Polyethylene Terephthalate (PET)

Ambalaj

Tray

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperaturemax

100

Efficiency Type

Sound Pressure Level (SPL)

Optoelectronic Device Type

TRIAC OUTPUT OPTOCOUPLER

Uzunluk

15mm

Yükseklik

3.1mm

Seri

CDS

Frequencyselfresonant

500Hz

Fabrika Tedarik Süresi

8 Weeks

Isolation Voltagemax

5300

Configuration

SINGLE

Frequency Range

400Hz~20kHz

Number Of Elements

1

Yayın Yılı

2016

Maks. Oturma Yüksekliği

0.118 3.00mm

RoHS Durumu

RoHS Compliant
