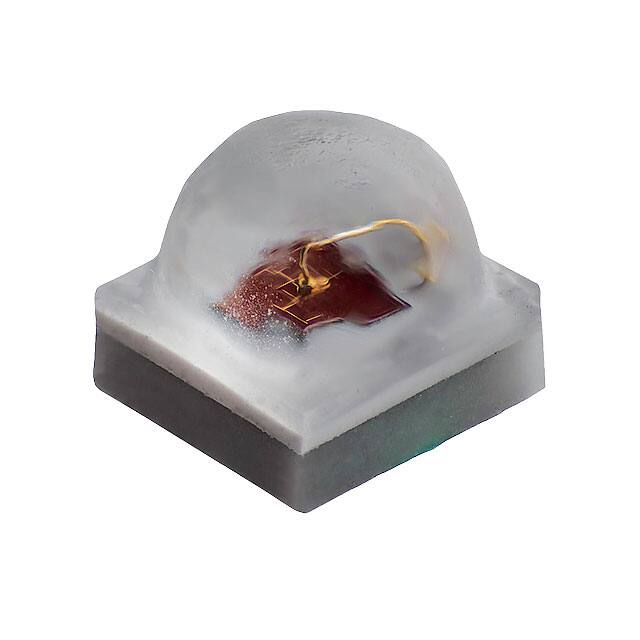

XQARED-02-0000-000000W01

Teknik Özellikler

If Forward Current

175 mA

Paket

Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;

Maks. Oturma Yüksekliği

0.068 1.73mm

Forward Voltage

2.2V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

Xlamp® XQ-A

Power Rating

1 W

Montaj

Surface Mount

Luminous Flux Currenttemperature

25lm (24lm ~ 27lm)

Current Test

175mA

Temperaturetest

25°C

Ürün Durumu

Active

RoHS

Details

Thermal Resistance Of Package

18°C/W

Wavelengthcolor Temperature

630 nm

Boyut / Ölçü

0.063Lx0.063W 1.60mmx1.60mm

Voltage Forward Vf Typ

2.2V

Luminous Fluxradiant Flux

23.5 lm

Vf Forward Voltage

2.2 V

Case Code Metric

1616

Montaj Stili

SMD/SMT

Max Current Rating

250mA

Fabrika Paket Adedi

250

Renk

Red

Lens Color

Colorless

Wavelength

625nm 620nm ~ 630nm

Ürün Tipi

LED - High Power

Tedarikçi Cihaz Paketi

SMD

RoHS Durumu

RoHS Compliant

Lens Dimensions

1.872 mm

Lumenswatt Current Test

65 lm/W

Montaj Tipi

Surface Mount

Ambalaj

Tape & Reel (TR)

Case Code Imperial

0606

Lens Shape

Dome

Lens Transparency

Clear

Flux Currenttemperature Test

25lm 24lm~27lm

Parça Durumu

Active

Illumination Color

Red

Birim Ağırlık

0.020251 oz
