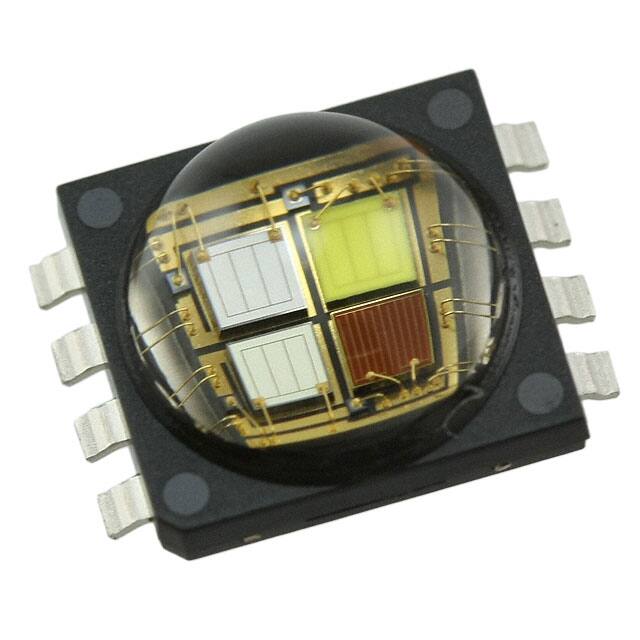

MCE4CT-A2-0000-00A5AAAA1

Teknik Özellikler

Viewing Angle

115°

Depth

7.5mm

Montaj

Surface Mount

Power Rating

9.5W

Parça Durumu

Active

Luminous Flux

100 lm

Illumination Color

White

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

4 (72 Hours)

Yükseklik

4.48mm

Montaj Tipi

Surface Mount

Number Of Leds

4

Reverse Voltage

5V

Forward Current

350mA

Current Test

350mA Red 350mA Green 350mA Blue 350mA White

Reach Svhc

Unknown

Fabrika Tedarik Süresi

10 Weeks

Forward Voltagemax

3.9V

Reverse Voltage Dc

5V

Seri

XLamp® MC-E

Kılıf / Paket

8-SMD, Gull Wing Exposed Pad

Radyasyon Dayanımı

No

Temel Parça No

MCE4CT

Renk

Red, Green, Blue, White - Cool (RGBW)

Maks. Oturma Yüksekliği

0.184 4.68mm

Number Of Elements

1

Color Rendering Index Cri

75

Optoelectronic Device Type

MULTIPLE COLOR LED ARRAY

Lumenswatt Current Test

42 lm/W Red 56 lm/W Green 7 lm/W Blue 89 lm/W White Cool

Boyut / Ölçü

0.276Lx0.295W 7.00mmx7.50mm

Pin Sayısı

8

Dominant Wavelength

465 nm

Ambalaj

Tape & Reel (TR)

Lens Style

Dome

Max Current Rating

700mA

Lens Color

Clear

Temperaturetest

25°C

Thermal Resistance Of Package

6°C/W

Voltage Forward Vf Typ

2.1V Red 3.4V Green 3.2V Blue 3.2V White
