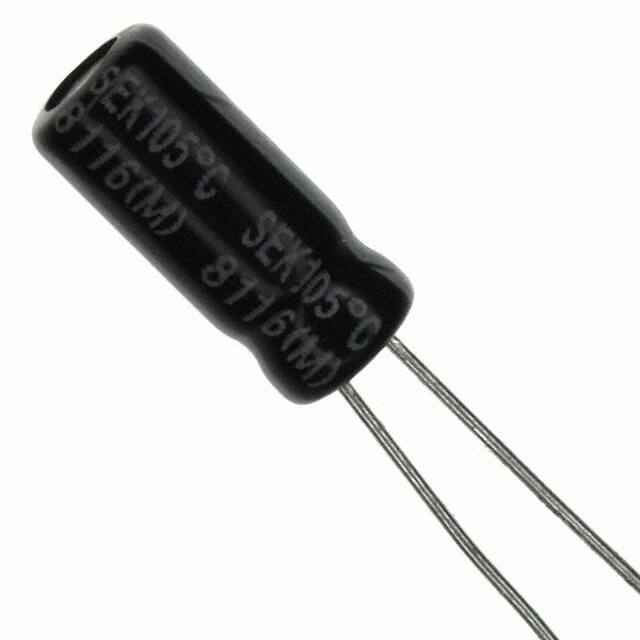

SEK470M050ST

Teknik Özellikler

JESD-609 Kodu

e3

Capacitor Type

ALUMINUM ELECTROLYTIC CAPACITOR

Terminal Shape

WIRE

Boyut / Ölçü

0.248Dia 6.30mm

Kurşunsuz Kodu

yes

Lead Length

15mm

Voltage Rated Dc

50V

Ripple Current

125mA

Kılıf / Paket

Radial, Can

Esr Equivalent Series Resistance

3.39Ohm

Seri

SEK

Reach Svhc

Unknown

Montaj Tipi

Through Hole

Terminal Kaplaması

Tin (Sn)

Lead Pitch

2.5mm

Çalışma Sıcaklığı

-55°C~105°C

Terminal Sayısı

2

Terminal

Radial

Ambalaj

Bulk

Leakage Current

0.0235mA

Lead Spacing

0.098 2.50mm

Lifetime Temp

2000 Hrs @ 105°C

Montaj

PCB, Through Hole

Kapasitans

47μF

Tan Delta

0.12

Maks. Oturma Yüksekliği

0.453 11.50mm

Dielectric Material

Aluminium

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Lead Diameter

500 μm

Çap

6.3mm

Polarity

POLARIZED

Tolerans

±20%

Applications

General Purpose

Yükseklik

11.5mm

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

25 Weeks

Life Hours

2000 hours

Kurşunsuz

Lead Free

Dissipation Factor

12 %
