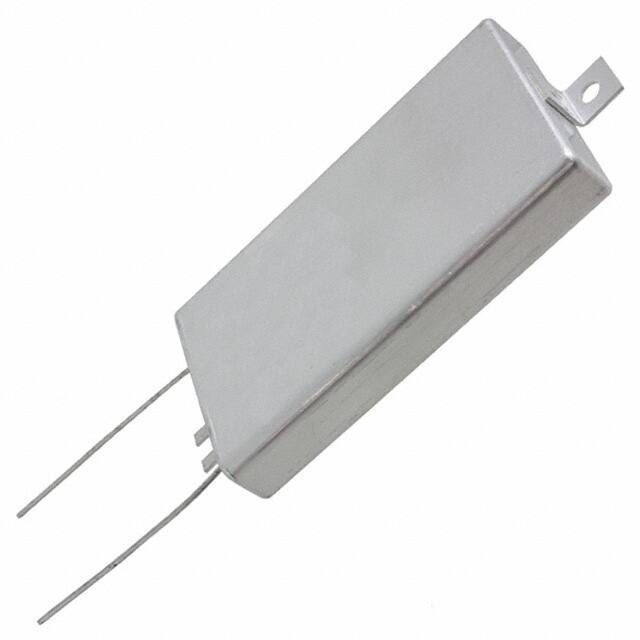

MLP561M300EB1A

Teknik Özellikler

Montaj Tipi

Chassis Mount

Yükseklik

12.7mm

Ripple Current Low Frequency

3.2A @ 120Hz

Parça Durumu

Active

Leadbase Style

Straight

Lead Spacing

1.000 25.40mm

Tolerans

±20%

JESD-609 Kodu

e0

Terminal

Radial

Reach Svhc

Unknown

Ambalaj

Bulk

Ripple Current High Frequency

4A @ 20kHz

Boyut / Ölçü

3.000Lx1.750W 76.20mmx44.45mm

Kılıf / Paket

FlatPack, Tabbed

Terminal Sayısı

2

HTS Kodu

8532.22.00.55

Fabrika Tedarik Süresi

21 Weeks

Seri

MLP

Terminal Kaplaması

Tin/Lead (Sn/Pb)

Polarization

Polar

Lead Pitch

25.4mm

Esr Equivalent Series Resistance

240mOhm @ 120Hz

Life Hours

2000 hours

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Rated Dc

300V

Ripple Current Ac

3.2A

RoHS Durumu

Non-RoHS Compliant

Kurşunsuz Kodu

no

Capacitor Type

ALUMINUM ELECTROLYTIC CAPACITOR

Kapasitans

560μF

Uzunluk

76.2mm

Applications

General Purpose

Dielectric Material

ALUMINUM (WET)

Genişlik

44.45mm

Ripple Current

3.2A

Working Voltage

300V

ECCN Kodu

EAR99

Lifetime Temp

2000 Hrs @ 85°C

Çalışma Sıcaklığı

-40°C~85°C

Yayın Yılı

2012
