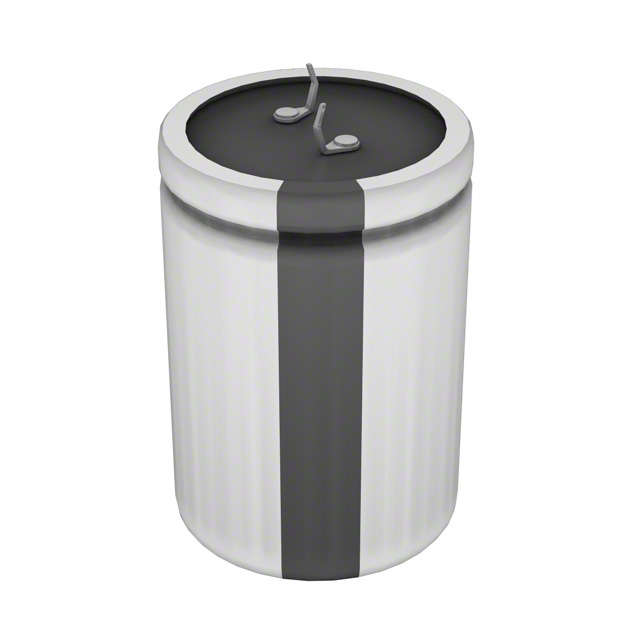

LPX152M250H9P3

Teknik Özellikler

Test Frequency

120Hz

Pin Sayısı

2

Çap

35mm

Özellikler

General Purpose

Yükseklik

50mm

Terminal Kaplaması

TIN

Montaj Tipi

Through Hole

Seri

LPX

Tolerans

±20%

Life Hours

1000 hours

Polarization

Polar

JESD-609 Kodu

e3

Applications

General Purpose

Terminal

Snap in

Lead Pitch

10mm

Kılıf / Paket

Radial, Can - Snap-In

Dissipation Factor

30 %

Tan Delta

0.3

Kapasitans

1500μF

Lead Spacing

0.394 10.00mm

Reach Svhc

No SVHC

Boyut / Ölçü

1.378Dia 35.00mm

Yayın Yılı

2009

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

25 Weeks

Dielectric Material

Aluminium

Esr Equivalent Series Resistance

133mOhm @ 120Hz

Ambalaj

Bulk

RoHS Durumu

ROHS3 Compliant

Lead Diameter

800 μm

Ripple Current

4.2A

Capacitor Type

ALUMINUM ELECTROLYTIC CAPACITOR

Ripple Current High Frequency

4.62A @ 50kHz

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Rated Dc

250V

Ripple Current Low Frequency

4.2A @ 120Hz

Parça Durumu

Active

Maks. Oturma Yüksekliği

1.969 50.00mm

Montaj

PCB, Through Hole
