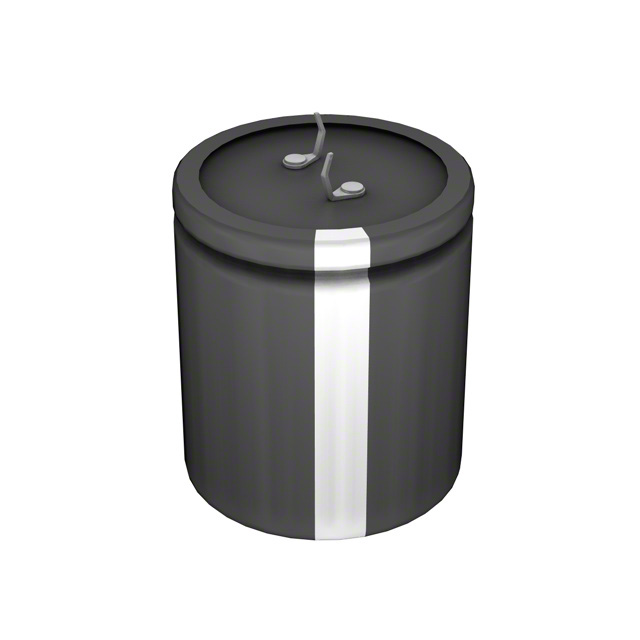

LP123M035H7P3

Teknik Özellikler

Ripple Current Low Frequency

3.59A @ 120Hz

Reach Svhc

Unknown

Boyut / Ölçü

1.378Dia 35.00mm

Maks. Oturma Yüksekliği

1.575 40.00mm

Leakage Current

8.4mA

Polarization

Polar

Yükseklik

40mm

Ripple Current

3.59A

Capacitor Type

ALUMINUM ELECTROLYTIC CAPACITOR

Tan Delta

0.47

Test Frequency

120Hz

Lead Pitch

10mm

Kılıf / Paket

Radial, Can - Snap-In

Yayın Yılı

2009

Kurşunsuz Kodu

yes

Ripple Current High Frequency

3.949A @ 100kHz

Tolerans

±20%

Terminal Kaplaması

Tin (Sn)

Esr Equivalent Series Resistance

35mOhm @ 120Hz

JESD-609 Kodu

e3

Lifetime Temp

1000 Hrs @ 105°C

Life Hours

1000 hours

Seri

LP

Terminal

Snap in

Çap

35mm

Çalışma Sıcaklığı

-40°C~105°C

Ambalaj

Bulk

Montaj

PCB, Through Hole

Montaj Tipi

Through Hole

Kapasitans

12000μF

Pin Sayısı

2

Fabrika Tedarik Süresi

25 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

General Purpose

ECCN Kodu

EAR99

Dielectric Material

Aluminium

Voltage Rated Dc

35V

Lead Spacing

0.394 10.00mm

Dissipation Factor

25 %

RoHS Durumu

ROHS3 Compliant
