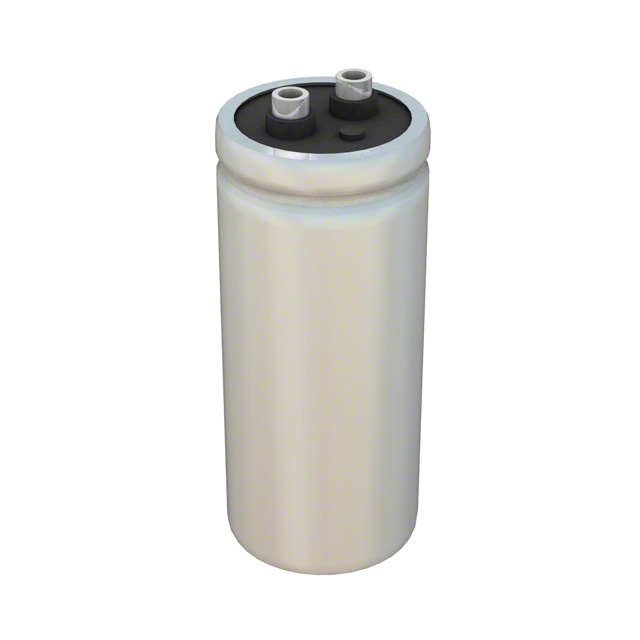

CG152U075R3C

Teknik Özellikler

Ripple Current

4.7A

Dielectric Material

Aluminium

Yayın Yılı

2005

Seri

CG

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Terminal

Screw

Terminal Shape

BINDING POST

Applications

General Purpose

Montaj

Chassis Mount, Clamp

Maks. Oturma Yüksekliği

3.125 79.38mm

Leakage Current

1.00623mA

Fabrika Tedarik Süresi

16 Weeks

Esr Equivalent Series Resistance

45mOhm @ 120Hz

Life Hours

2000 hours

RoHS Durumu

ROHS3 Compliant

Yükseklik

79.4mm

Lifetime Temp

2000 Hrs @ 85°C

Montaj Tipi

Chassis Mount

Kılıf / Paket

Radial, Can - Screw Terminals

Ripple Current Low Frequency

4.7A @ 120Hz

Kapasitans

1500μF

Capacitor Type

ALUMINUM ELECTROLYTIC CAPACITOR

Terminal Sayısı

2

REACH Uyumluluk Kodu

unknown

Çalışma Sıcaklığı

-40°C~85°C

ECCN Kodu

EAR99

Voltage Rated Dc

75V

Çap

35mm

Ripple Current High Frequency

5.405A @ 10kHz

Boyut / Ölçü

1.375Dia 34.93mm

Ambalaj

Bulk

Tolerans

-10% +75%

Lead Pitch

12.7mm

Polarization

Polar
