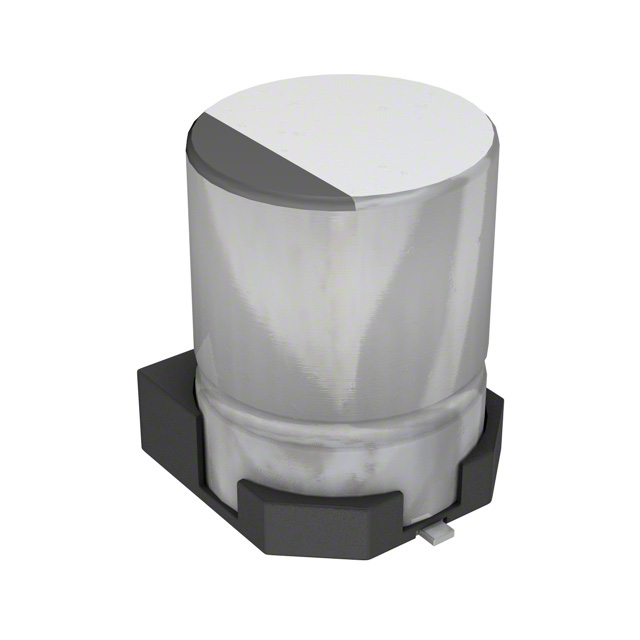

AVS107M35X16T-F

Teknik Özellikler

Terminal Sayısı

2

Capacitor Type

ALUMINUM ELECTROLYTIC CAPACITOR

Kapasitans

100μF

Polarization

Polar

Dielectric Material

Aluminium

ECCN Kodu

EAR99

Terminal Shape

FLAT

Ripple Current

130mA

Montaj

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

SMD/SMT

Kurşunsuz

Lead Free

Kılıf / Paket

Radial, Can - SMD

Ripple Current Low Frequency

130mA @ 120Hz

Montaj Tipi

Surface Mount

Life Hours

2000 hours

Packing Method

TR

Parça Durumu

Active

Size Code

3126

RoHS Durumu

ROHS3 Compliant

Applications

Automotive, Bypass, Decoupling

Boyut / Ölçü

0.248Dia 6.30mm

Dissipation Factor

0.12 %

Seri

AVS

Lead Pitch

1.8mm

Voltage Rated Dc

35V

Surface Mount Land Size

0.260Lx0.260W 6.60mmx6.60mm

Maks. Oturma Yüksekliği

0.311 7.90mm

Kurşunsuz Kodu

yes

Genişlik

6.6mm

Leakage Current

35μA

Yayın Yılı

2014

JESD-609 Kodu

e6

Çap

6.3mm

Fabrika Tedarik Süresi

20 Weeks

Ripple Current High Frequency

221mA @ 10kHz

Yükseklik

7.9mm

Uzunluk

7.8mm

Esr Equivalent Series Resistance

2Ohm @ 120Hz

Lifetime Temp

2000 Hrs @ 85°C
