Fiyat için teklif alın
Adet ve teslim süresine göre fiyatlandırılır.
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

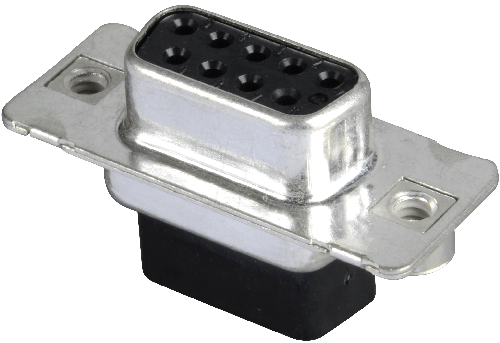

Teknik Özellikler
- Contact Type
- Signal
- Renk
- Black
- Pozisyon Sayısı
- 9
- Contact Materials
- NOT SPECIFIED
- Sıra Sayısı
- 2
- RoHS Durumu
- ROHS3 Compliant
- Gender
- Female
- Reference Standard
- UL
- Note
- Contacts Not Included
- Fabrika Tedarik Süresi
- 12 Weeks
- Body Depth
- 0.453 inch
- Ambalaj
- Bulk
- Montaj
- Free Hanging
- Dielectric Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Ratings
- Dust Tight, IP67, Waterproof
- Yayın Yılı
- 2006
- Operating Temperature Min
- -55°C
- Shell Material Finish
- Steel, Tin Plated
- Flange Feature
- Cable Side (4-40)
- Nem Hassasiyeti (MSL)
- Not Applicable
- Dielectric Withstanding Voltage
- 1000VDC V
- Contact Resistance
- 10mOhm
- Insulation Materials
- GLASS FILLED POLYBUTYLENE TEREPHTHALATE
- Connector Type
- Receptacle for Female Contacts
- Rated Current Signal
- 7.5A
- Parça Durumu
- Active
- Shell Finish Thickness
- 315μin 8.00μm
- Shell Size Connector Layout
- 1 DE E
- Montaj Tipi
- Free Hanging (In-Line)
- Total Number Of Contacts
- 9
- Connector Style
- D-Sub
- Terminal
- Through Hole
- Reliability
- COMMERCIAL
- Contact Finish Mating
- NOT SPECIFIED
