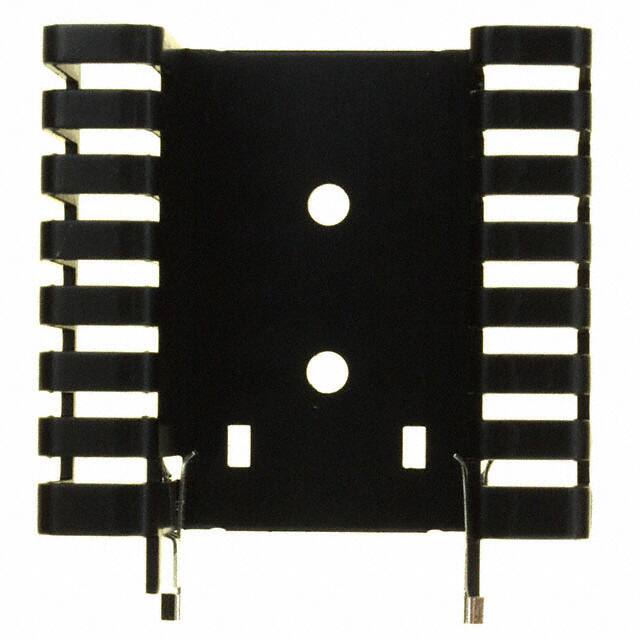

825802B05300

Teknik Özellikler

Body Material

Aluminium

Thermal Resistance Forced Air Flow

2.50°C/W @ 400 LFM

Yayın Yılı

2006

Tip

Board Level, Vertical

Parça Durumu

Obsolete

Material Finish

Black Anodized

Kılıf / Paket

TO-220

Shape

Rectangular, Fins

Nem Hassasiyeti (MSL)

Not Applicable

Height Off Base Height Of Fin

0.950 24.13mm

Yükseklik

49.5mm

Montaj

Bolt, PC Pin

Uzunluk

1.950 49.53mm

Package Cooled

TO-220

Attachment Method

Bolt On and PC Pin

Genişlik

1.900 48.26mm

Renk

Black

Depth

48.3mm

Power Dissipation Temperature Rise

3.0W @ 20°C

RoHS Durumu

RoHS Compliant

Material

Aluminum

Kurşunsuz

Lead Free
