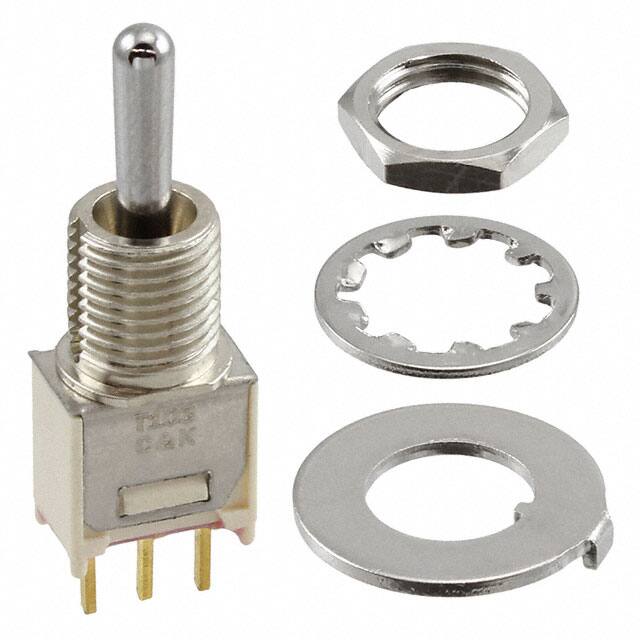

T103STDCBE

Teknik Özellikler

Electricallife

30,000 Cycles

Actuator Length

8.38mm

Yayın Yılı

2011

Montaj Tipi

Panel Mount

Illumination Type

Illuminated, Non-Illuminated

Voltage Rated Ac

20V

Özellikler

Epoxy Sealed Terminals

Contact Current Rating

400mA

Genişlik

5mm

Terminal

Solder

Depth

7.11mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yükseklik

8.64mm

Power Rating

400mW

Çalışma Sıcaklığı

-30°C~85°C

Max Voltage Rating Dc

20V

Circuit

SPDT

Uzunluk

8.13mm

Max Voltage Rating Ac

20V

Parça Durumu

Active

Actuator Type

Standard Round

Orientation

Straight

Panel Cutout Dimensions

Circular - 6.35mm Dia

Switch Function

On-Off-On

Fabrika Tedarik Süresi

16 Weeks

Voltage Rated Dc

20V

Actuator Material

Brass, Chrome Plated

Bushing Thread

1/4-40

Terminal Stili

PC Pin

Reach Svhc

No SVHC

Number Of Poles

1

Ambalaj

Tray

Current Rating Amps

0.4VA AC/DC

Contact Materials

Gold

Seri

T

Housing Material

Stainless Steel

Radyasyon Dayanımı

No

Contact Resistance

20mOhm

Illumination

Non-Illuminated

Montaj

Panel
