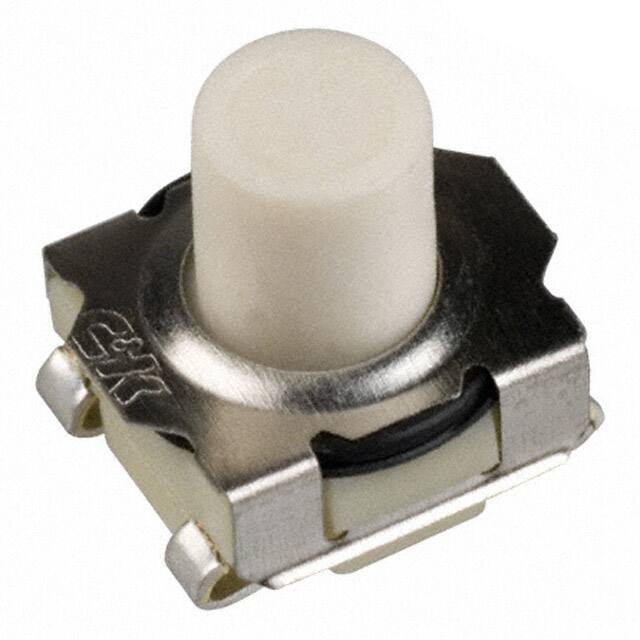

KT11P4JM34LFS

Teknik Özellikler

Illumination

Non-Illuminated

Uzunluk

7.57mm

Actuator Type

Standard

Max Voltage Rating Ac

32V

Çalışma Sıcaklığı

-40°C~90°C

Contact Materials

Silver

Voltage Rated Dc

32V

Switch Function

Off-Mom

Özellikler

Sealed

Kurşunsuz

Lead Free

Orientation

Right Angle

Mechanical Life

100,000 Cycles

Parça Durumu

Active

Voltage Rated Ac

32V

Outline

6.38mm x 6.22mm

Terminal

Gull Wing

Ambalaj

Tape & Reel (TR)

Contact Rating Voltage

1VA @ 32VAC/DC

Fabrika Tedarik Süresi

9 Weeks

Max Voltage Rating Dc

32V

Actuator Orientation

Top Actuated

Circuit

SPST-NO

Throw Configuration

SPST

Montaj Tipi

Surface Mount

Electricallife

100000 cycles

Actuator Length

3.96mm

RoHS Durumu

ROHS3 Compliant

Operating Force

300gf

Seri

KT

Ingress Protection

IP57 - Dust Protected, Waterproof

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

8.29mm

Actuator Height Off Pcb Vertical

6.96mm

Radyasyon Dayanımı

No

Power Rating

1W

Yayın Yılı

2006

Actuator Material

Polyamide (PA), Nylon

Terminal Stili

J Lead

Illumination Type

Illuminated, Non-Illuminated

Montaj

Surface Mount
