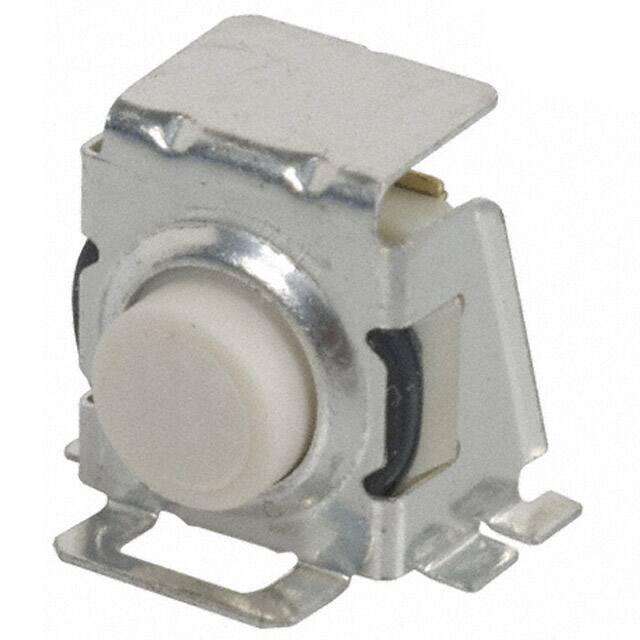

KT11P3SA2M35LFG

Teknik Özellikler

Actuator Material

Polyamide (PA), Nylon

Terminal Stili

Gull Wing

Ratings

IP57, Waterproof

Montaj

Surface Mount

Contact Plating

Gold, Silver

Power Rating

1W

Yayın Yılı

2007

Actuator Length

1.12mm

Electricallife

100000 cycles

Seri

KT

Operating Force

300gf

Ingress Protection

IP57 - Dust Protected, Waterproof

Kılıf / Paket

SMD/SMT

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Radyasyon Dayanımı

No

Max Voltage Rating Dc

32V

Circuit

SPST-NO

Actuator Orientation

Side Actuated

Montaj Tipi

Surface Mount, Right Angle

Throw Configuration

SPST

Fabrika Tedarik Süresi

9 Weeks

Parça Durumu

Active

Voltage Rated Ac

32V

Outline

7.77mm x 6.41mm

Contact Rating Voltage

1VA @ 32VAC/DC

Ambalaj

Tape & Reel (TR)

Terminal

Gull Wing

Mechanical Life

100,000 Cycles

Actuator Type

Standard

Max Voltage Rating Ac

32V

Illumination

Non-Illuminated

Çalışma Sıcaklığı

-40°C~90°C

Voltage Rated Dc

32V

Switch Function

Off-Mom

Özellikler

Sealed

Kurşunsuz

Lead Free

Orientation

Right Angle
