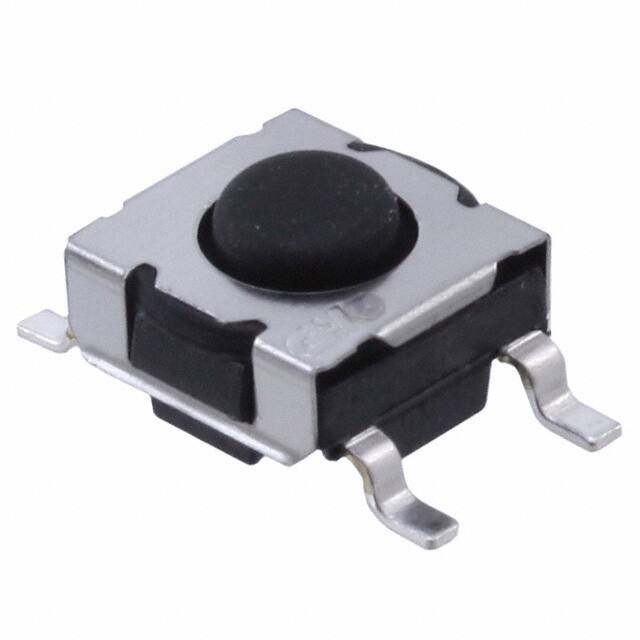

KT11B1SM34LFS

Teknik Özellikler

Mechanical Life

100,000 Cycles

Voltage Rated Dc

32V

Switch Function

Off-Mom

Özellikler

Sealed

Kurşunsuz

Lead Free

Orientation

Right Angle

Contact Materials

Silver

Çalışma Sıcaklığı

-40°C~90°C

Actuator Type

Standard

Max Voltage Rating Ac

32V

Illumination

Non-Illuminated

Uzunluk

7.57mm

Fabrika Tedarik Süresi

9 Weeks

Outline

6.38mm x 6.22mm

Terminal

Gull Wing

Ambalaj

Tape & Reel (TR)

Contact Rating Voltage

1VA @ 32VAC/DC

Parça Durumu

Active

Voltage Rated Ac

32V

Radyasyon Dayanımı

No

Nem Hassasiyeti (MSL)

1 (Unlimited)

Actuator Height Off Pcb Vertical

3.64mm

Ingress Protection

IP57 - Dust Protected, Waterproof

Seri

KT

Operating Force

300gf

RoHS Durumu

ROHS3 Compliant

Actuator Length

640μm

Electricallife

100000 cycles

Montaj Tipi

Surface Mount

Throw Configuration

SPST

Circuit

SPST-NO

Actuator Orientation

Top Actuated

Max Voltage Rating Dc

32V

Ratings

IP57, Waterproof

Montaj

Surface Mount

Terminal Stili

Gull Wing

Reach Svhc

No SVHC

Actuator Material

Rubber

Yayın Yılı

2006

Power Rating

1W
