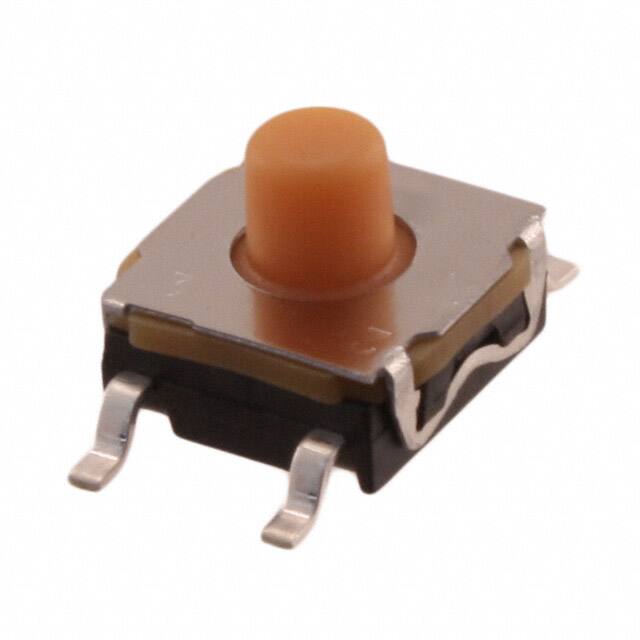

KSC423G70SHLFG

Teknik Özellikler

Voltage Rated Dc

32V

Terminal

Gull Wing

Maks. Çalışma Sıcaklığı

125°C

Illumination

Non-Illuminated

Mechanical Life

300,000 Cycles

Operating Force

160gf

Akım Değeri

10mA

Outline

6.20mm x 6.20mm

Orientation

Straight

Contact Materials

Gold

Illumination Type

Non-Illuminated

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Ratings

Dust Tight, IP67, Waterproof

Çalışma Sıcaklığı

-40°C~125°C

Switch Travel

0.50mm

Max Voltage Rating Dc

32V

Max Current Rating

10mA

Actuator Length

2.6mm

Kılıf / Paket

SMD/SMT

Contact Rating Voltage

0.01A @ 32VDC

Montaj

Surface Mount

Yayın Yılı

2012

Min. Çalışma Sıcaklığı

-40°C

Power Rating

200mW

Fabrika Tedarik Süresi

16 Weeks

Contact Plating

Silver

Depth

10mm

Terminal Stili

Gull Wing

Actuator Height Off Pcb Vertical

5.20mm

Montaj Tipi

Surface Mount

Parça Durumu

Active

Uzunluk

6.2mm

Actuator Orientation

Top Actuated

Throw Configuration

SPST

Seri

KSC

Circuit

SPST-NO

Switch Function

Off-Mom

Actuator Type

Standard
