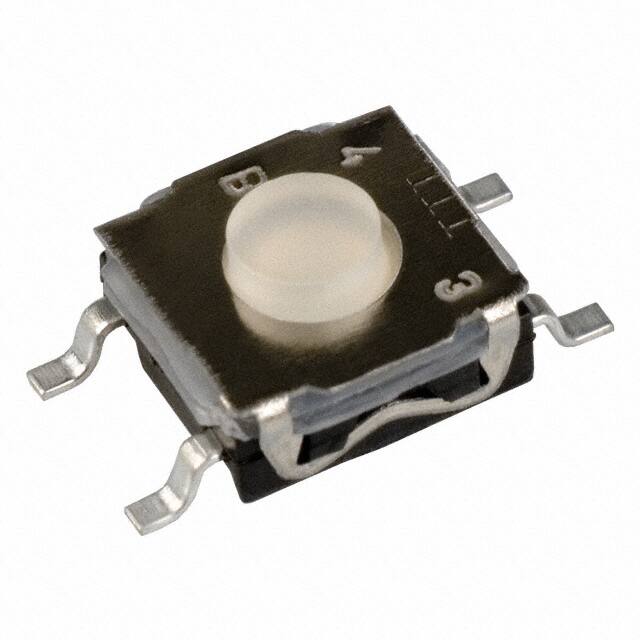

KSC201GLFS

Teknik Özellikler

Illumination

Non-Illuminated

Uzunluk

6.2mm

Montaj

Surface Mount

Outline

6.20mm x 6.20mm

Throw Configuration

SPST

Ambalaj

Tape & Reel (TR)

Orientation

Straight

Terminal Stili

Gull Wing

Actuator Length

900μm

Çalışma Sıcaklığı

-40°C~85°C

Switch Function

Off-Mom

Power Rating

1W

Max Current Rating

50mA

Depth

10mm

Pozisyon Sayısı

2

Genişlik

6.2mm

Kurşunsuz

Lead Free

Actuator Type

Standard

Terminal

Gull Wing

Actuator Orientation

Top Actuated

Parça Durumu

Active

Ingress Protection

IP67 - Dust Tight, Waterproof

Actuator Height Off Pcb Vertical

3.50mm

Max Voltage Rating Dc

32V

Voltage Rated Dc

32V

Seri

KSC

Montaj Tipi

Surface Mount

Operating Force

160gf

Switch Travel

0.30mm

RoHS Durumu

ROHS3 Compliant

Ratings

Dust Tight, IP67, Waterproof

Contact Rating Voltage

0.05A @ 32VDC

Circuit

SPST-NO

Fabrika Tedarik Süresi

16 Weeks

Contact Materials

Silver

Yayın Yılı

2007

Akım Değeri

50mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mechanical Life

5,000,000 Cycles
