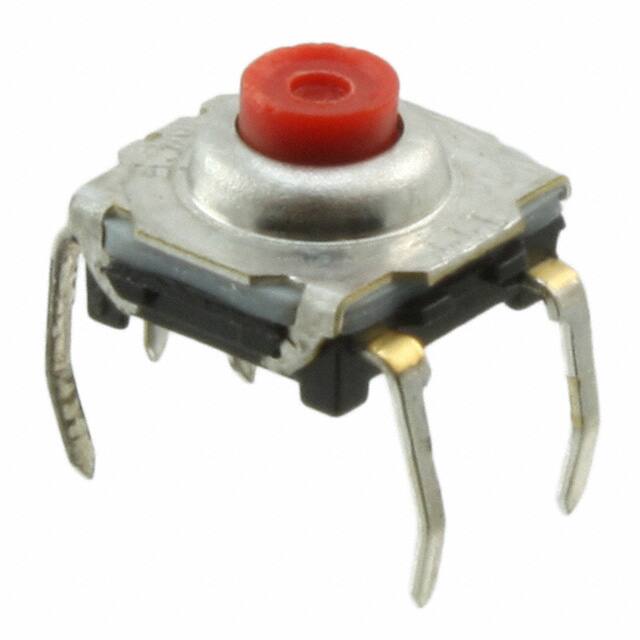

KSA1M331LFT

Teknik Özellikler

Mechanical Life

1,000,000 Cycles

Akım Değeri

10mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Circuit

SPST-NO

Yayın Yılı

2011

Contact Materials

Gold, Silver

Switch Travel

0.50mm

RoHS Durumu

ROHS3 Compliant

Operating Force

130gf

Ratings

Dust Tight, IP60

Contact Rating Voltage

0.01A @ 32VDC

Contact Plating

Silver

Seri

KSA

Voltage Rated Dc

24V

Montaj Tipi

Through Hole

Max Voltage Rating Dc

32V

Actuator Height Off Pcb Vertical

4.70mm

Ingress Protection

IP60 - Dust Tight

Parça Durumu

Discontinued

Actuator Orientation

Top Actuated

Terminal

PC Pin

Genişlik

7.4mm

Kurşunsuz

Lead Free

Actuator Type

Standard

Özellikler

Grounding Pin

Power Rating

200mW

Depth

8.2mm

Max Current Rating

10mA

Actuator Length

1mm

Switch Function

Off-Mom

Çalışma Sıcaklığı

-40°C~125°C

Outline

7.40mm x 7.40mm

Ambalaj

Bulk

Orientation

Straight

Terminal Stili

PC Pin

Throw Configuration

SPST

Yükseklik

4.7mm

Uzunluk

7.4mm

Montaj

Through Hole

Illumination

Non-Illuminated
