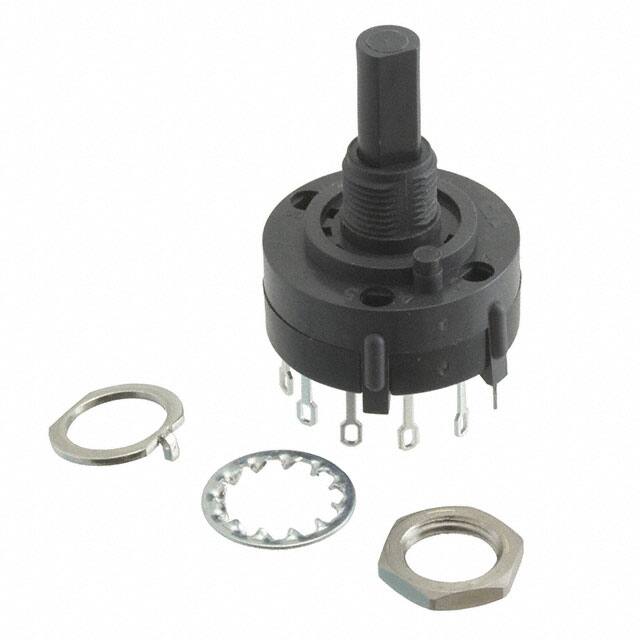

A40305RNZQ

Teknik Özellikler

Uzunluk

26.19mm

Actuator Type

Flatted (6.35mm Dia)

Index Angle

30 °

Voltage Rated Dc

125V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Voltage Rating Ac

125V

Current Rating Amps

2.5A AC 350mA DC

Fabrika Tedarik Süresi

16 Weeks

Actuator Material

Glass, Nylon

Akım Değeri

2.5A

Number Of Poles Per Deck

4

Yayın Yılı

2014

Voltage Rated Ac

125V

Contact Materials

Silver (Ag)

Terminal Stili

Solder Lug

Throw Configuration

4P, 4P3T

Montaj

Panel, Through Hole

Depth

26.19mm

Index Stops

Fixed

Max Current Rating

2.5A

Number Of Decks

1

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Housing Material

Nylon

Pozisyon Sayısı

3

Max Voltage Rating Dc

125V

Orientation

Straight

Maks. Çalışma Sıcaklığı

85°C

Montaj Tipi

Panel Mount

Contact Timing

Non-Shorting (BBM)

Min. Çalışma Sıcaklığı

-30°C

Contact Style

Non-Shorting

Circuit Per Deck

4P3T

Panel Cutout Dimensions

Circular - 9.80mm Dia

Depth Behind Panel

20.83mm

Electricallife

300000 cycles

Terminal

Solder

Seri

A

Reach Svhc

No SVHC

Actuator Length

12.70mm
