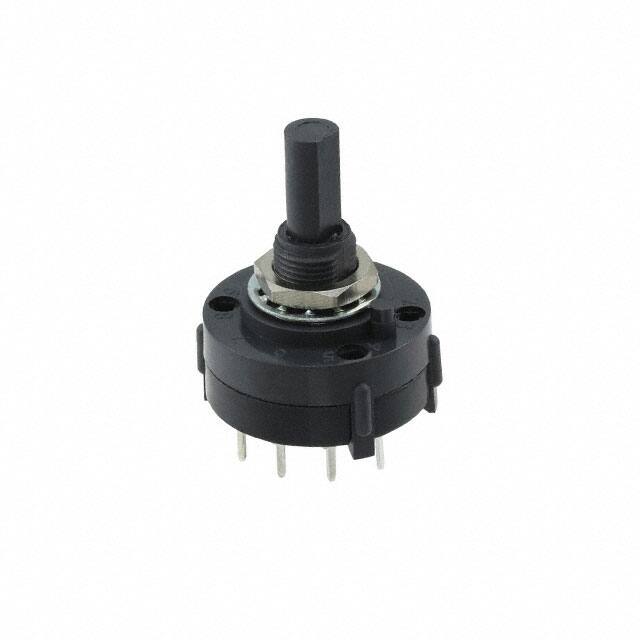

A20405RNCQ

Teknik Özellikler

Number Of Poles Per Deck

2

Contact Materials

Silver (Ag)

Depth Behind Panel

14.48mm

Min. Çalışma Sıcaklığı

-30°C

Actuator Material

Glass, Nylon

Parça Durumu

Active

Seri

A

Voltage Rated Dc

125V

Pozisyon Sayısı

4

Depth

26.19mm

RoHS Durumu

ROHS3 Compliant

Terminal

PC Pins

Electricallife

300000 cycles

Index Stops

Fixed

Orientation

Straight

Number Of Decks

1

Yayın Yılı

2010

Housing Material

Nylon

Montaj

Panel, Through Hole

Panel Cutout Dimensions

Circular - 9.80mm Dia

Contact Timing

Non-Shorting (BBM)

Akım Değeri

2.5A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Panel Mount, Through Hole

Circuit Per Deck

DP4T

Fabrika Tedarik Süresi

16 Weeks

Max Voltage Rating Dc

125V

Max Current Rating

2.5A

Max Voltage Rating Ac

125V

Contact Style

Non-Shorting

Voltage Rated Ac

125V

Index Angle

30 °

Actuator Type

Flatted (6.35mm Dia)

Uzunluk

26.19mm

Actuator Length

12.70mm

Current Rating Amps

2.5A AC 350mA DC

Maks. Çalışma Sıcaklığı

85°C

Contact Finish

Silver

Terminal Stili

PC Pin
