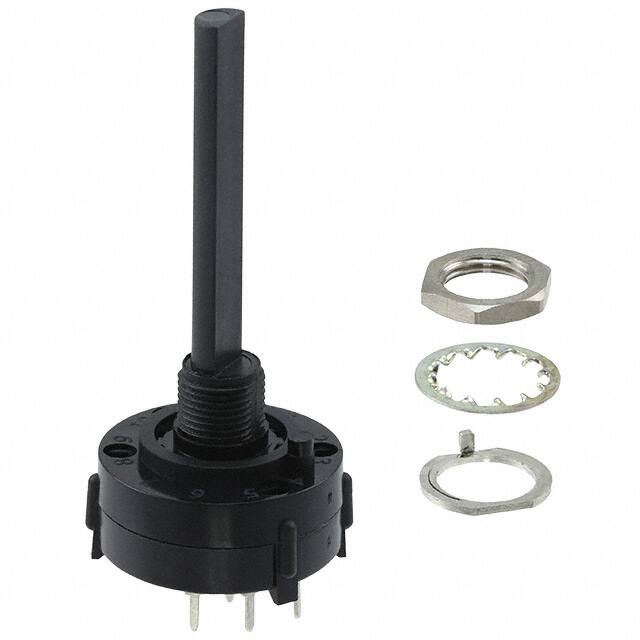

A20314RNCQ

Teknik Özellikler

RoHS Durumu

ROHS3 Compliant

Pozisyon Sayısı

3

Depth

26.19mm

Seri

A

Voltage Rated Dc

125V

Angle Of Throw

30°

Index Stops

Fixed

Contact Plating

Silver

Electricallife

300000 cycles

Terminal

PC Pins

Contact Materials

Silver (Ag)

Depth Behind Panel

14.48mm

Number Of Poles Per Deck

2

Parça Durumu

Active

Actuator Material

Glass, Nylon

Min. Çalışma Sıcaklığı

-30°C

Housing Material

Nylon

Yayın Yılı

2010

Orientation

Straight

Throw Configuration

DP3T

Number Of Decks

1

Akım Değeri

2.5A

Panel Cutout Dimensions

Circular - 9.80mm Dia

Montaj

Panel, Through Hole

Contact Timing

Non-Shorting (BBM)

Actuator Type

Flatted (6.35mm Dia)

Uzunluk

26.19mm

Index Angle

30 °

Voltage Rated Ac

125V

Contact Style

Non-Shorting

Max Voltage Rating Ac

125V

Terminal Stili

PC Pin

Contact Finish

Silver

Maks. Çalışma Sıcaklığı

85°C

Current Rating Amps

2.5A AC 350mA DC

Actuator Length

38.10mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Panel Mount, Through Hole

Max Current Rating

2.5A

Max Voltage Rating Dc

125V
