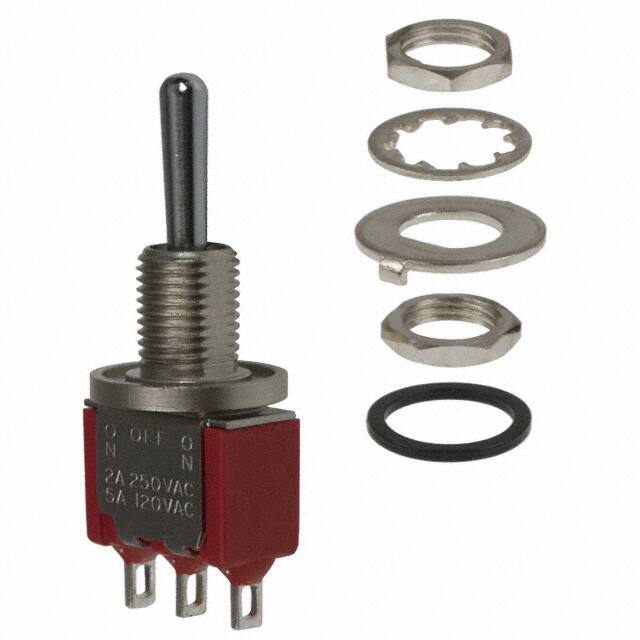

7105SCWZQE

Teknik Özellikler

Terminal Stili

Solder Lug

Contact Current Rating

5A

Parça Durumu

Active

Kurşunsuz

Lead Free

Actuator Length

10.67mm

Max Voltage Rating Dc

28V

Depth

11.81mm

Özellikler

Epoxy Sealed Terminals

Ratings

Dust Tight, IP67, Waterproof

Actuator Type

Standard Round

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Voltage Rated Ac

120V

Electricallife

40,000 Cycles

Akım Değeri

5A

Contact Materials

Silver

Max Current Rating

5A

Max Voltage Rating Ac

250V

Ingress Protection

IP67 - Dust Tight, Waterproof

Yayın Yılı

2012

Throw Configuration

SP, SPDT

Actuator Material

Brass, Chrome Plated

Circuit

SPDT

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Panel Mount

Illumination Type

Illuminated, Non-Illuminated

Panel Cutout Dimensions

Circular - 6.35mm Dia

Montaj

Panel

Housing Material

Stainless Steel

Switch Function

Mom-Off-Mom

Terminal

Solder

Orientation

Straight

Current Rating Amps

5A AC/DC

Fabrika Tedarik Süresi

14 Weeks

Uzunluk

12.7mm

Çalışma Sıcaklığı

-30°C~85°C

Illumination

Non-Illuminated

Seri

7000

Bushing Thread

1/4-40

Voltage Rated Dc

28V
