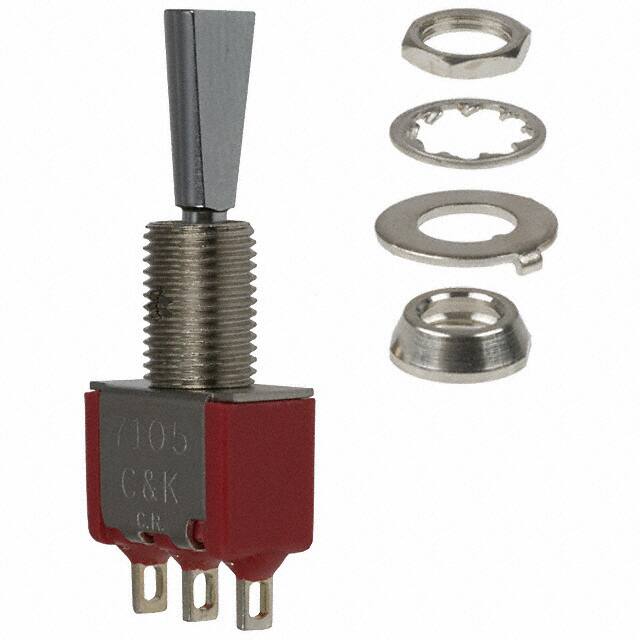

7105P3YZQE

Teknik Özellikler

Terminal

Solder

Current Rating Amps

5A AC/DC

Uzunluk

12.7mm

Onay Kuruluşu

UL

Housing Material

Stainless Steel

Switch Function

Mom-Off-Mom

Montaj Tipi

Panel Mount

Illumination Type

Illuminated, Non-Illuminated

Montaj

Panel

Bushing Thread

1/4-40

Actuator Type

Flat Anti-Rotation

Ambalaj

Bulk

Body Material

Glass, Nylon, Stainless Steel

Depth

6.86mm

Özellikler

Epoxy Sealed Terminals

Max Voltage Rating Dc

28V

Actuator Length

11.43mm

Parça Durumu

Active

Contact Current Rating

5A

Yayın Yılı

2005

Actuator Material

Brass, Chrome Plated

Circuit

SPDT

Max Voltage Rating Ac

250V

Electricallife

40,000 Cycles

Voltage Rated Ac

120V

Orientation

Straight

Pozisyon Sayısı

3

Fabrika Tedarik Süresi

14 Weeks

Panel Cutout Dimensions

Circular - 6.35mm Dia

RoHS Durumu

ROHS3 Compliant

Contact Plating

Gold, Silver

Insulation Resistance

1GOhm

Voltage Rated Dc

28V

Seri

7000

Radyasyon Dayanımı

No

Çalışma Sıcaklığı

-30°C~85°C

Number Of Poles

1

Illumination

Non-Illuminated

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz

Lead Free
