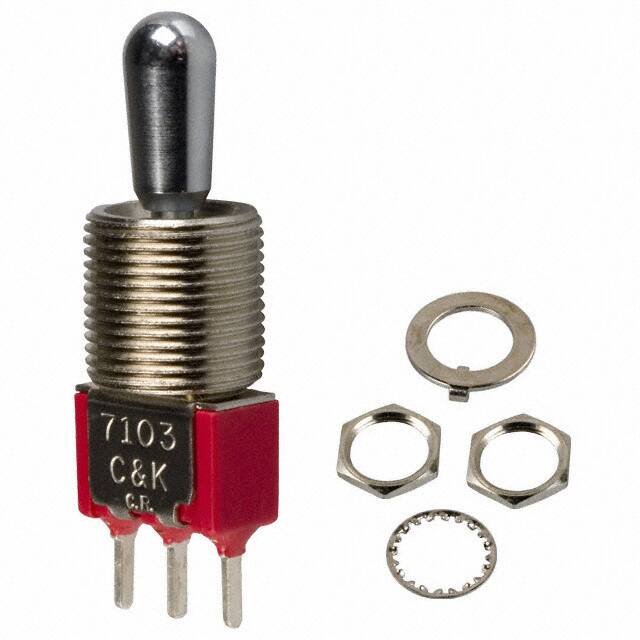

7103T1CWCQE

Teknik Özellikler

Throw Configuration

SP, SPDT

Panel Cutout Dimensions

Circular - 11.91mm Dia

Fabrika Tedarik Süresi

14 Weeks

Seri

7000

Actuator Type

Standard Round

Illumination

Non-Illuminated

Terminal

PC Pins

Contact Current Rating

5A

Actuator Material

Brass, Chrome Plated

Terminal Stili

PC Pin

Housing Material

Stainless Steel

Voltage Rated Dc

28V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Current Rating Amps

5A AC/DC

Ratings

Dust Tight, IP67, Waterproof

Uzunluk

12.7mm

Yayın Yılı

2012

Radyasyon Dayanımı

No

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Bushing Thread

15/32-32

Voltage Rated Ac

120V

Depth

11.81mm

Contact Materials

Silver

Ingress Protection

IP67 - Dust Tight, Waterproof

Çalışma Sıcaklığı

-30°C~85°C

Ambalaj

Bulk

Özellikler

Epoxy Sealed Terminals

Montaj Tipi

Panel Mount

Akım Değeri

5A

Switch Function

On-Off-On

Circuit

SPDT

Max Voltage Rating Dc

28V

Montaj

Panel

Max Current Rating

5A

Actuator Length

12.37mm

Illumination Type

Illuminated, Non-Illuminated

Kurşunsuz

Lead Free

Max Voltage Rating Ac

250V
