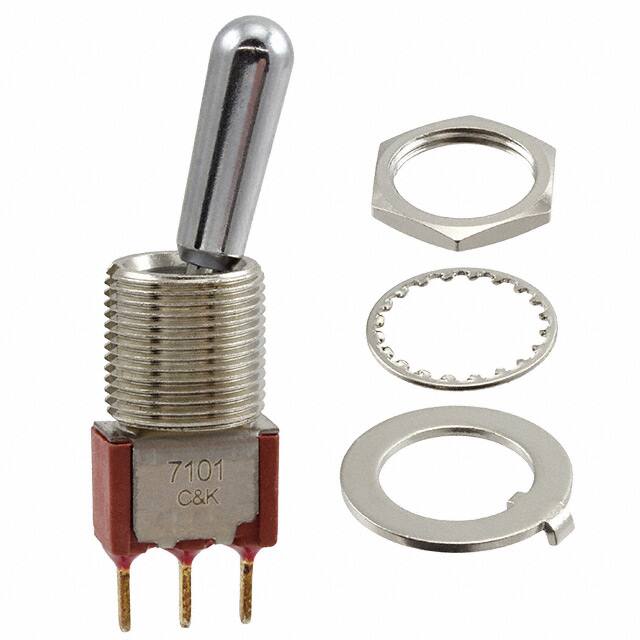

7101TCWCBE

Teknik Özellikler

Electricallife

100,000 Cycles

Switch Function

On-On

Montaj Tipi

Panel Mount

Throw Configuration

SP, SPDT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Actuator Material

Brass, Chrome Plated

Uzunluk

12.7mm

Voltage Rated Dc

20V

Panel Cutout Dimensions

Circular - 11.91mm Dia

Ingress Protection

IP67 - Dust Tight, Waterproof

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

14 Weeks

Kurşunsuz

Lead Free

Özellikler

Epoxy Sealed Terminals

Housing Material

Stainless Steel

Max Voltage Rating Dc

20V

Power Rating

400mW

Orientation

Straight

Illumination

Non-Illuminated

Terminal

PC Pin

Actuator Type

Standard Round

Parça Durumu

Active

Depth

11.81mm

Bushing Thread

15/32-32

Ratings

Dust Tight, IP67, Waterproof

Circuit

SPDT

Seri

7000

Voltage Rated Ac

20V

Montaj

Panel

Çalışma Sıcaklığı

-30°C~85°C

Actuator Length

17.45mm

Yayın Yılı

2012

Contact Materials

Gold

Max Voltage Rating Ac

20V

Terminal Stili

PC Pin

Current Rating Amps

0.4VA AC/DC

Illumination Type

Illuminated, Non-Illuminated
