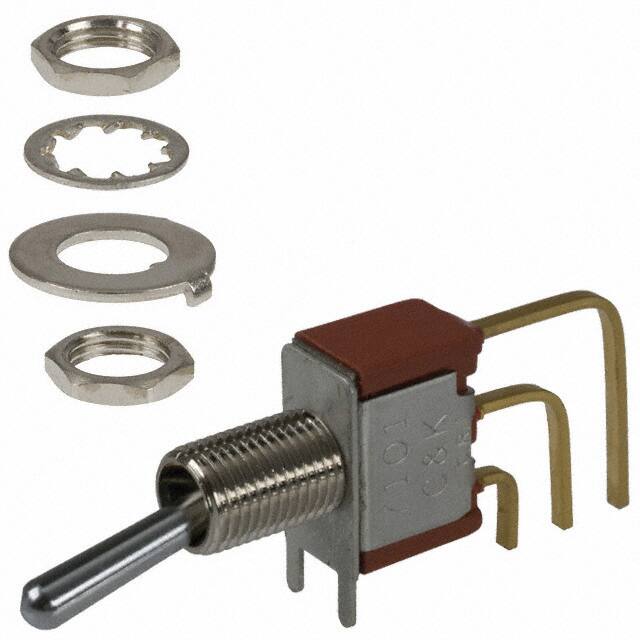

7101SYAV2BE

Teknik Özellikler

Montaj Tipi

Panel Mount, Right Angle, Vertical

Switch Function

On-On

Electricallife

100,000 Cycles

Uzunluk

6.86mm

Actuator Material

Brass, Chrome Plated

Ambalaj

Tray

Throw Configuration

SP, SPDT

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Panel Cutout Dimensions

Circular - 6.35mm Dia

Voltage Rated Dc

20V

Illumination

Non-Illuminated

Power Rating

400mW

Max Voltage Rating Dc

20V

Fabrika Tedarik Süresi

14 Weeks

Kurşunsuz

Lead Free

Özellikler

Epoxy Sealed Terminals

Housing Material

Stainless Steel

Parça Durumu

Active

Depth

40.26mm

Actuator Type

Standard Round

Terminal

PC Pins

Actuator Length

10.67mm

Çalışma Sıcaklığı

-30°C~85°C

Akım Değeri

400mA

Montaj

Brackets, Panel, Vertical

Seri

7000

Voltage Rated Ac

20V

Circuit

SPDT

Bushing Thread

1/4-40

Max Voltage Rating Ac

20V

Contact Materials

Gold

Yayın Yılı

2011

Illumination Type

Illuminated, Non-Illuminated

Pin Sayısı

3

Terminal Stili

PC Pin

Current Rating Amps

0.4VA AC/DC
