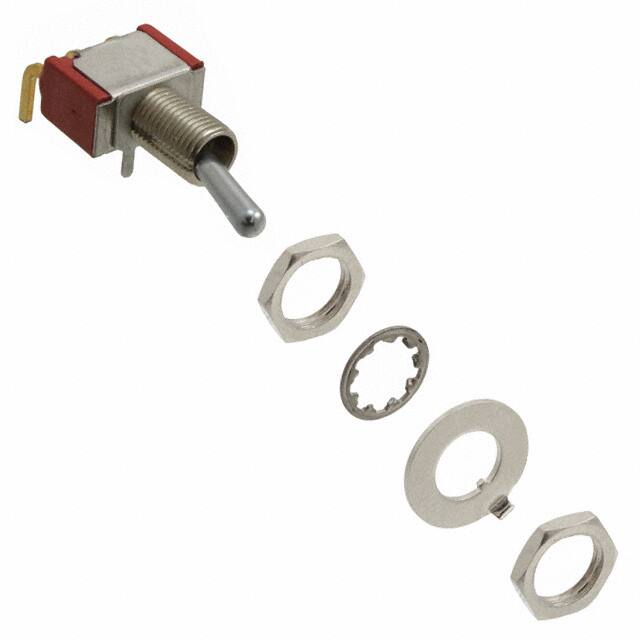

7101SYABE

Teknik Özellikler

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

14 Weeks

Housing Material

Stainless Steel

Özellikler

Epoxy Sealed Terminals

Max Voltage Rating Dc

20V

Power Rating

400mW

Orientation

Right Angle

Illumination

Non-Illuminated

Voltage Rated Dc

20V

Panel Cutout Dimensions

Circular - 6.35mm Dia

RoHS Durumu

ROHS3 Compliant

Throw Configuration

SP, SPDT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tray

Actuator Material

Brass, Chrome Plated

Electricallife

100,000 Cycles

Switch Function

On-On

Montaj Tipi

Panel Mount, Right Angle

Terminal Stili

PC Pin

Current Rating Amps

0.4VA AC/DC

Illumination Type

Illuminated, Non-Illuminated

Yayın Yılı

2011

Contact Materials

Gold

Max Voltage Rating Ac

20V

Bushing Thread

1/4-40

Circuit

SPDT

Montaj

Brackets, Panel

Voltage Rated Ac

20V

Seri

7000

Actuator Length

10.67mm

Çalışma Sıcaklığı

-30°C~85°C

Terminal

PC Pins

Actuator Type

Standard Round

Parça Durumu

Active
