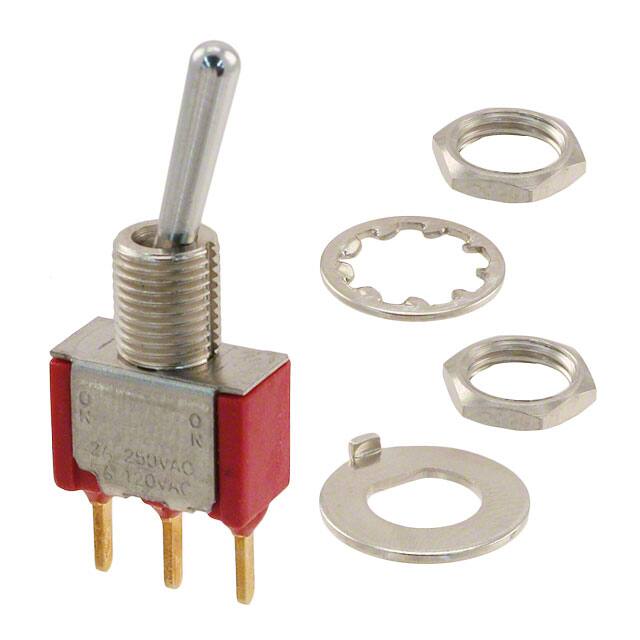

7101SDCGE

Teknik Özellikler

Panel Cutout Dimensions

Circular - 6.35mm Dia

Voltage Rated Dc

28V

RoHS Durumu

ROHS3 Compliant

Max Voltage Rating Dc

28V

Özellikler

Epoxy Sealed Terminals

Housing Material

Stainless Steel

Fabrika Tedarik Süresi

14 Weeks

Orientation

Straight

Illumination

Non-Illuminated

Switch Function

On-On

Electricallife

100,000 Cycles

Montaj Tipi

Panel Mount

Ambalaj

Tray

Max Current Rating

5A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Throw Configuration

SP, SPDT

Uzunluk

12.7mm

Actuator Material

Brass, Chrome Plated

Yayın Yılı

2012

Max Voltage Rating Ac

250V

Contact Plating

Gold, Silver

Contact Materials

Silver

Radyasyon Dayanımı

No

Current Rating Amps

5A AC/DC

Terminal Stili

PC Pin

Illumination Type

Illuminated, Non-Illuminated

Terminal

PC Pins

Depth

6.86mm

Parça Durumu

Active

Actuator Type

Standard Round

Circuit

SPDT

Bushing Thread

1/4-40

Çalışma Sıcaklığı

-30°C~85°C

Actuator Length

12.45mm

Seri

7000

Voltage Rated Ac

120V

Montaj

Panel

Akım Değeri

5A
