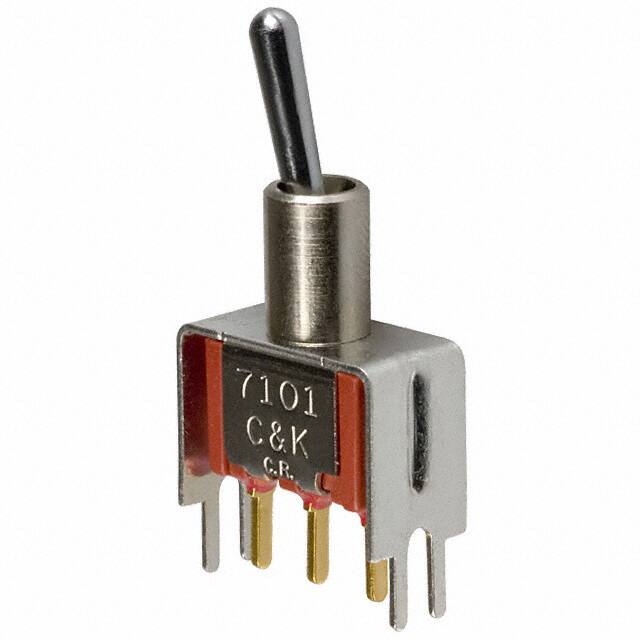

7101SD9V3GE

Teknik Özellikler

Bushing Thread

Unthreaded

Circuit

SPDT

Akım Değeri

5A

Seri

7000

Voltage Rated Ac

120V

Montaj

Brackets, Through Hole

Actuator Length

12.45mm

Çalışma Sıcaklığı

-30°C~85°C

Terminal

PC Pin

Actuator Type

Standard Round

Parça Durumu

Active

Terminal Stili

PC Pin

Current Rating Amps

5A AC/DC

Illumination Type

Illuminated, Non-Illuminated

Yayın Yılı

2012

Contact Materials

Silver

Contact Plating

Gold, Silver

Max Voltage Rating Ac

250V

Throw Configuration

SP, SPDT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tray

Actuator Material

Brass, Chrome Plated

Electricallife

100,000 Cycles

Switch Function

On-On

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

14 Weeks

Kurşunsuz

Lead Free

Özellikler

Epoxy Sealed Terminals

Contact Current Rating

5A

Housing Material

Stainless Steel

Max Voltage Rating Dc

28V

Power Rating

400mW

Illumination

Non-Illuminated

Orientation

Straight

Voltage Rated Dc

28V

RoHS Durumu

ROHS3 Compliant
