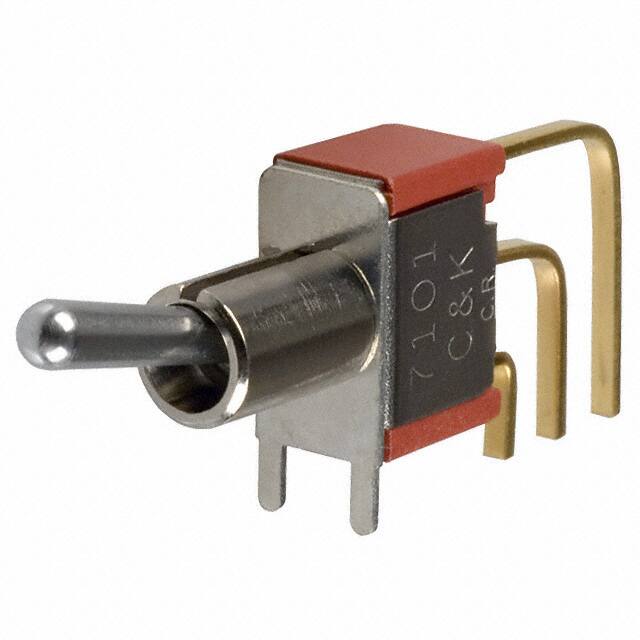

7101SD9AV2BE

Teknik Özellikler

Terminal

PC Pins

Actuator Type

Standard Round

Parça Durumu

Active

Depth

40.26mm

Bushing Thread

Unthreaded

Circuit

SPDT

Seri

7000

Voltage Rated Ac

20V

Montaj

Brackets, Through Hole, Vertical

Çalışma Sıcaklığı

-30°C~85°C

Actuator Length

12.45mm

Yayın Yılı

2011

Radyasyon Dayanımı

No

Contact Materials

Gold

Max Voltage Rating Ac

20V

Terminal Stili

PC Pin

Current Rating Amps

0.4VA AC/DC

Illumination Type

Illuminated, Non-Illuminated

Electricallife

100,000 Cycles

Switch Function

On-On

Montaj Tipi

Through Hole, Right Angle, Vertical

Throw Configuration

SP, SPDT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tray

Actuator Material

Brass, Chrome Plated

Uzunluk

6.86mm

Voltage Rated Dc

20V

RoHS Durumu

ROHS3 Compliant

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

14 Weeks

Housing Material

Stainless Steel

Özellikler

Epoxy Sealed Terminals

Max Voltage Rating Dc

20V

Power Rating

400mW

Illumination

Non-Illuminated
