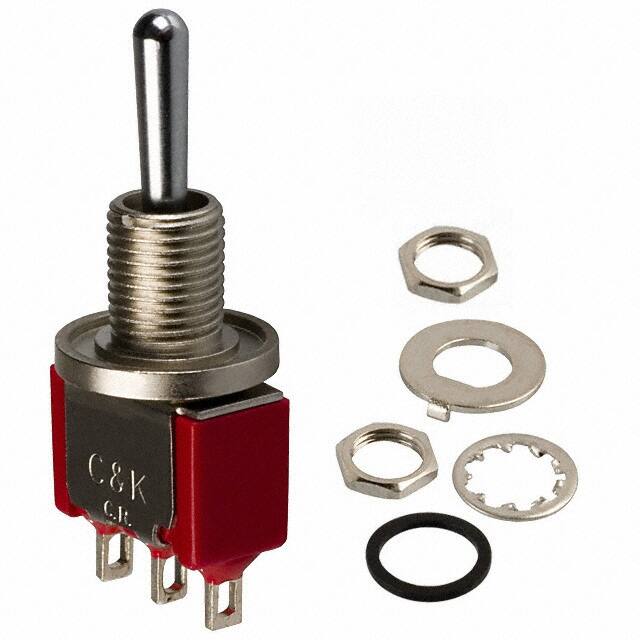

7101SCWZQE

Teknik Özellikler

Max Voltage Rating Dc

28V

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

14 Weeks

Housing Material

Stainless Steel

Contact Current Rating

5A

Özellikler

Epoxy Sealed Terminals

Illumination

Non-Illuminated

Orientation

Straight

Panel Cutout Dimensions

Circular - 6.35mm Dia

Voltage Rated Dc

28V

RoHS Durumu

ROHS3 Compliant

Ingress Protection

IP67 - Dust Tight, Waterproof

Max Current Rating

5A

Ambalaj

Bulk

Throw Configuration

SP, SPDT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Actuator Material

Brass, Chrome Plated

Uzunluk

12.7mm

Switch Function

On-On

Electricallife

100,000 Cycles

Montaj Tipi

Panel Mount

Terminal Stili

Solder Lug

Current Rating Amps

5A AC/DC

Illumination Type

Illuminated, Non-Illuminated

Yayın Yılı

2012

Max Voltage Rating Ac

250V

Radyasyon Dayanımı

No

Contact Materials

Silver

Ratings

Dust Tight, IP67, Waterproof

Circuit

SPDT

Bushing Thread

1/4-40

Actuator Length

10.67mm

Çalışma Sıcaklığı

-30°C~85°C

Akım Değeri

5A

Montaj

Panel

Voltage Rated Ac

120V

Seri

7000

Terminal

Solder

Parça Durumu

Active

Depth

11.81mm
