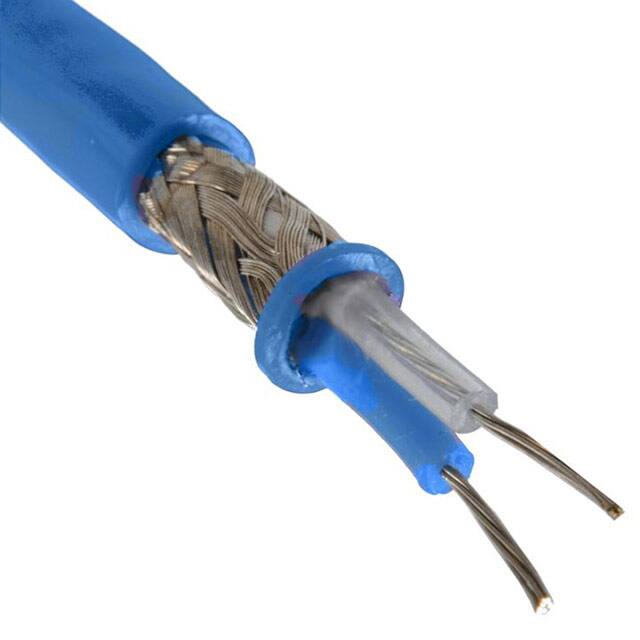

M17/176-00002

Teknik Özellikler

Wire Gauge

24 AWG

Shield Coverage

93%

Conductor Material

Copper, Silver Coated

Insulation Diameter

3.2766 mm

Empedans

77Ohm

Dielectric Material

Polytetrafluoroethylene (PTFE)

Jacket Insulation Material

Perfluoroalkoxy (PFA)

Wirecable Gauge

24 AWG

Uzunluk

500.0' 152.40m

Insulation Materials

Teflon

Dielectric Diameter

0.042 (1.07mm)

RoHS Durumu

RoHS Compliant

Vop Velocity Of Propagation

70

Radyasyon Dayanımı

No

Number Of Conductors

2

Fabrika Tedarik Süresi

13 Weeks

Shield Material

Copper, Silver Coated

Jacket Insulation Diameter

0.129 (3.28mm)

Jacket Color

Blue

Özellikler

High Temperature

Connector Type

SC

Parça Durumu

Active

Montaj

Cable

Cable Types

Twinaxial

Çalışma Sıcaklığı

-55°C~200°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2012

Conductor Strand

19 Strands / 36 AWG

Shield Type

Braid
