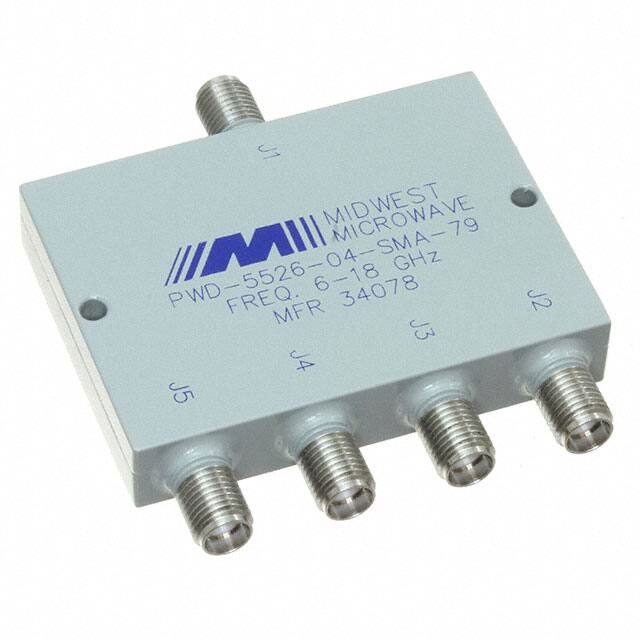

PWD-5526-04-SMA-79

Teknik Özellikler

Insertion Loss Db

1 dB

Yayın Yılı

2008

Rfmicrowave Device Type

SPLITTER

Boyut / Ölçü

1.460Lx2.000W 37.10mmx50.80mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Specifications

Isolation (Min) 18dB

Kılıf / Paket

Module

Construction

COAXIAL

RoHS Durumu

Non-RoHS Compliant

Parça Durumu

Active

Input Powermax Cw

44.77dBm

Fabrika Tedarik Süresi

9 Weeks

Ambalaj

Bulk

Operating Temperature Min

-54°C

Operating Temperature Max

125°C

Vswrmax

1.5

Additional Feature

SMA, ISOLATION-MIN (DB):18

Frekans

6GHz~18GHz
