Adet bazlı fiyat
- 1+ adet$9.69
- 10+ adet$9.14
- 100+ adet$8.63
- 500+ adet$8.14
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Contact Finish Mating
- NOT SPECIFIED
- RoHS Durumu
- RoHS Compliant
- Contact Plating
- Copper, Gold
- Additional Feature
- INSERTION LOSS MAX AT 6 GHZ
- Adapter Type
- Jack to Jack
- Mil Conformance
- NO
- Empedans
- 50Ohm
- Center Contact Material
- Beryllium Copper
- Fastening Type
- Threaded, Threaded
- Insertion Loss
- 0.25 dB
- Insulation Materials
- POLYTETRAFLUORO ETHYLENE
- Center Contact Plating
- Gold
- Convert To Adapter End
- SMA Jack, Female Socket
- Contact Materials
- Copper
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Conversion Type
- Same Series
- Frekans
- 18GHz
- Vswr
- 1.23
- Montaj
- Bulkhead, Panel
- Çalışma Sıcaklığı
- -65°C~165°C
- Yayın Yılı
- 2002
- Body Material
- Brass
- HTS Kodu
- 8536.69.80.00
- Includes

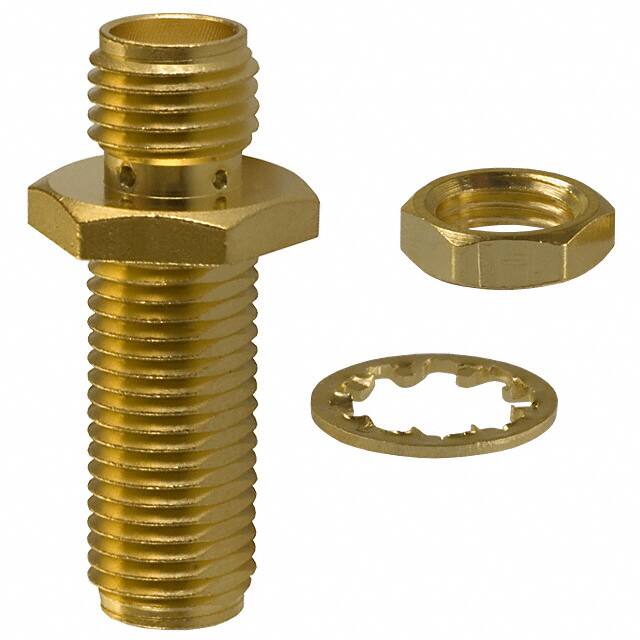

- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Mounting Feature
- Bulkhead
- Fabrika Tedarik Süresi
- 8 Weeks
- Nominal Gerilim
- 500V
- ECCN Kodu
- EAR99
- Din Conformance
- NO
- Adapter Series
- SMA to SMA
- Montaj Tipi
- Panel Mount
- Body Plating
- Copper, Gold
- Parça Durumu
- Active
- Polarity
- Normal
- Ambalaj
- Bulk
- Filter Feature
- NO
- Style
- Straight
- Convert From Adapter End
- SMA Jack, Female Socket
- Center Gender
- Female to Female
- Mating Cycles
- 500
