Teknik Özellikler
- Filter Feature
- NO
- Gender
- Male
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Connector Type
- Plug, Male Pin
- Mating Cycles
- 500
- Option
- GENERAL PURPOSE
- Iec Conformance
- NO
- Connector Style
- SMA
- Includes

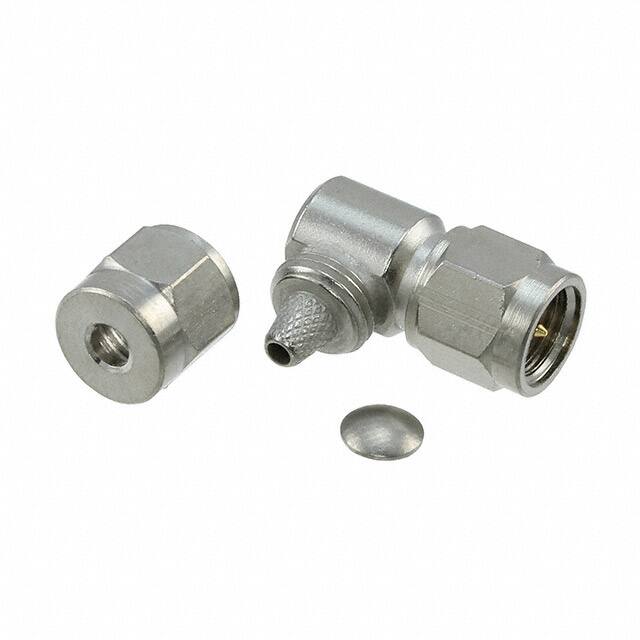

- 4 pcs - 1 Connector, 1 Clamp Cone, 1 Clamp Nut, 1 End Cap
- Nominal Gerilim
- 250V
- ECCN Kodu
- EAR99
- Fabrika Tedarik Süresi
- 8 Weeks
- Number Of Ports
- 1
- Montaj Tipi
- Free Hanging (In-Line), Right Angle
- Din Conformance
- NO
- Cable Group
- RG-161, 174, 188, 316
- Ambalaj
- Bulk
- Parça Durumu
- Active
- Shield Termination
- Clamp
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Frekans
- 12.4GHz
- Housing Color
- Silver
- Kurşunsuz
- Lead Free
- Çalışma Sıcaklığı
- -65°C~165°C
- Montaj
- Cable, Free Hanging
- Body Material
- Brass
- Yayın Yılı
- 2002
- Contact Termination
- Solder
- Orientation
- Right Angle
- Body Finish
- Nickel
- JESD-609 Kodu
- e4
- Contact Plating
- Nickel, Gold
- RoHS Durumu
- RoHS Compliant
- Mil Conformance
- NO
- Additional Feature
- INSERTION LOSS MAX AT 6GHZ, CAPTIVE CONTACT
- Radyasyon Dayanımı
- No
- Empedans
- 50Ohm
- Fastening Type
- Threaded
- Insertion Loss
- 0.37 dB
- Center Contact Plating
- Gold
