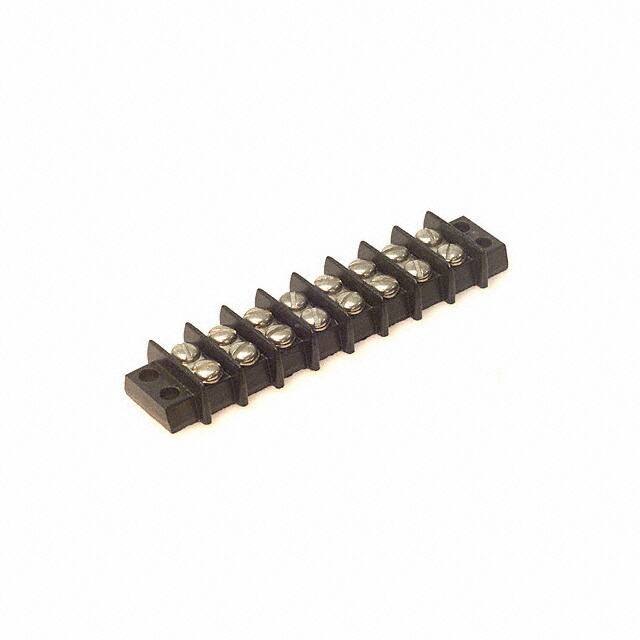

8-140

Teknik Özellikler

Yükseklik

10.3124mm

Housing Material

Phenolic

Number Of Decks

1

Pitch

0.375 9.53mm

Flammability Rating

UL94 V-1

Max Voltage Rating Ac

250V

Sıra Sayısı

2

Wire Gauge

16 AWG

Number Of Wire Entries

16

Terminal Screw Material

Steel

Material Insulation

Phenol Formaldehyde (Phenolic)

Barrier Type

2 Wall (Dual)

Fabrika Tedarik Süresi

8 Weeks

Özellikler

Flange

ECCN Kodu

EAR99

Top Termination

Screws

Çalışma Sıcaklığı

-55°F~300°F

Number Of Poles

8

Connector Type

Terminal Block

Seri

140

Parça Durumu

Active

Wire Gauge Max

16 AWG

Nem Hassasiyeti (MSL)

1 (Unlimited)

Radyasyon Dayanımı

No

Bottom Termination

Closed

Material Flammability Rating

UL94 V-1

Max Current Rating

15A

Terminal Block Type

Barrier Block

Montaj Tipi

Chassis, Panel

Uzunluk

92.88mm

Ambalaj

Bulk

Orientation

Straight

Montaj

Chassis, Panel, Screw

Number Of Ways

8

Genişlik

22.225mm

Lead Pitch

9.53mm

Safety Approval

UL; CSA

Renk

Black

Terminal

Screw

Contact Materials

Brass
