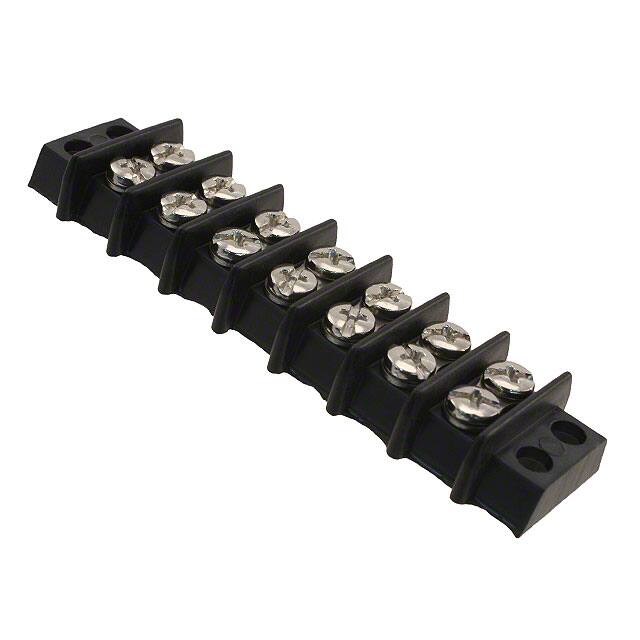

7-140

Teknik Özellikler

ECCN Kodu

EAR99

Wire Gauge Max

16 AWG

Montaj Tipi

Chassis, Panel

Nem Hassasiyeti (MSL)

Not Applicable

Çalışma Sıcaklığı

-55°F~300°F

Housing Material

Phenolic

Number Of Ways

7

Flammability Rating

UL94 V-1

Sıra Sayısı

2

Ambalaj

Bulk

Top Termination

Screws

Material Flammability Rating

UL94 V-1

Material Insulation

Phenol Formaldehyde (Phenolic)

Orientation

Straight

Montaj

Chassis, Panel

Wirecable Gauge

16 AWG

Uzunluk

83.3628mm

Max Current Rating

15A

Wire Gauge

16 AWG

Akım Değeri

15A

Number Of Decks

1

Terminal Block Type

Barrier Block

HTS Kodu

8536.69.40.40

Connector Type

Terminal Block

Depth

10.31mm

Seri

140

Genişlik

22.225mm

Terminal

Screw

Pitch

0.375 9.53mm

Barrier Type

2 Wall (Dual)

Renk

Black

Number Of Wire Entries

14

Yükseklik

10.3124mm

Bottom Termination

Closed

Voltage Rated Dc

250V

Parça Durumu

Active

Max Voltage Rating Ac

250V

Terminal Screw Finish

Nickel

RoHS Durumu

RoHS Compliant

Contact Materials

Brass
