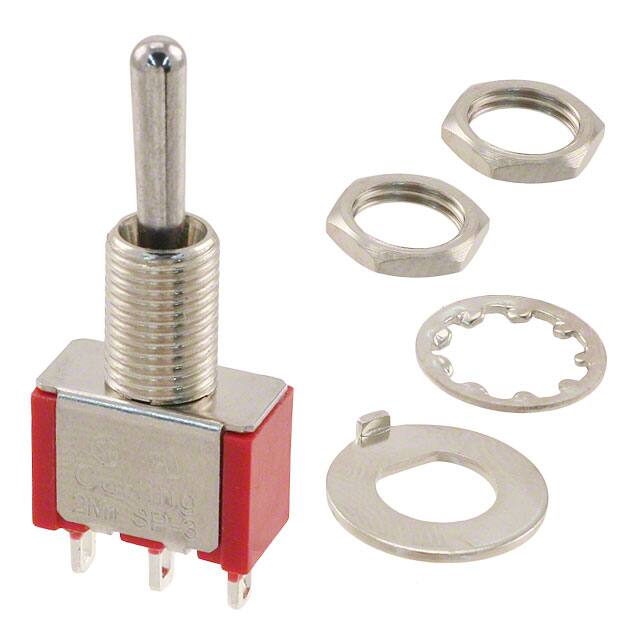

2M1-SP3-T1-B1-M1QE

Teknik Özellikler

Akım Değeri

5A

Contact Resistance

10mOhm

Seri

2M

Circuit

SPDT

Illumination

Non-Illuminated

Panel Cutout Dimensions

Circular - 6.35mm Dia

Onay Kuruluşu

CSA, UL

Actuator Length

10.40mm

Hole Diameter

6.35 mm

Kurşunsuz

Lead Free

Throw Configuration

SPDT, SPST

Illumination Type

Illuminated, Non-Illuminated

Electricallife

50,000 Cycles

Ambalaj

Bulk

Çalışma Sıcaklığı

-30°C~85°C

Insulation Resistance

1GOhm

Genişlik

6.6mm

Actuator Material

Brass, Chrome Plated

Switch Function

On-Off-On

Terminal Stili

Solder Lug

Terminal

Solder

Uzunluk

12.7mm

Orientation

Straight

Yayın Yılı

2005

Max Voltage Rating Dc

28V

Parça Durumu

Active

Voltage Rated Dc

28V

Montaj

Panel

Özellikler

Epoxy Sealed Terminals

Voltage Rated Ac

125V

Contact Current Rating

5A

Contact Plating

Silver

Pozisyon Sayısı

3

Current Rating Amps

5A AC/DC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Stainless Steel

Number Of Poles

1

Max Voltage Rating Ac

250V

Montaj Tipi

Panel Mount

RoHS Durumu

ROHS3 Compliant
