PX0411/03S/5560

Teknik Özellikler

Ingress Protection

IP68 - Dust Tight, Waterproof

Shielding

Unshielded

Voltage Rated Dc

250V

Shell Material

Polyamide (PA), Nylon

Orientation

Keyed

Contact Type

Crimp and Solder Cup

Gender

Receptacle

Özellikler

Backshell, UV Resistant

Additional Feature

STANDARD: VDE

Pozisyon Sayısı

3 (Power)

Contact Shape

Circular

Insulation Resistance

10MOhm

Parça Durumu

Active

Voltage Rated Ac

250V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fabrika Tedarik Süresi

20 Weeks

Includes

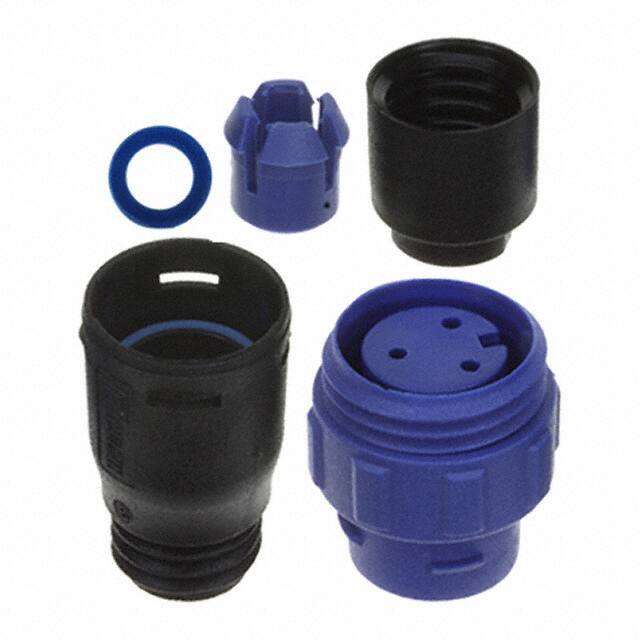

6 pcs - 1 Connector, 1 Backshell, 1 Cage Clamp, 1 Clamp Nut, 1 Gland, 1 O-Ring

Connector Type

Receptacle Housing

Fastening Type

Threaded

JESD-609 Kodu

e4

Total Number Of Contacts

3

Tip

For Female Sockets

Yayın Yılı

2002

Akım Değeri

8A

Contact Materials

Copper

Nem Hassasiyeti (MSL)

Not Applicable

Note

Contacts Not Included

Contact Plating

Gold

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Body Depth

1.811 inch

Çalışma Sıcaklığı

-40°C~80°C

Seri

Buccaneer® 400

Option

GENERAL PURPOSE

Reference Standard

CSA; UL

Mains Connector Rating

8A, 250VAC/DC

Pin Sayısı

3

Kurşunsuz Kodu

yes

Montaj Tipi

Free Hanging (In-Line)

RoHS Durumu

ROHS3 Compliant
