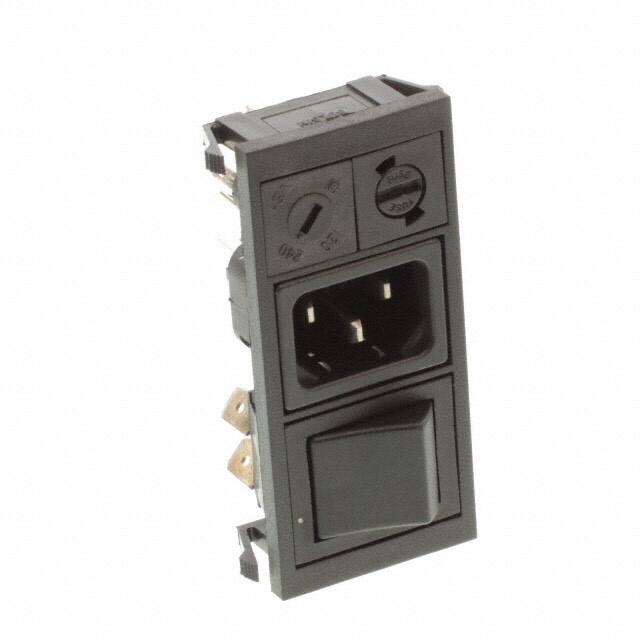

BZV03/Z0000/15

Teknik Özellikler

Genişlik

76.5mm

Iec Conformance

YES

Contact Materials

NOT SPECIFIED

Parça Durumu

Active

Terminal

Quick Connect - 0.250 (6.3mm)

Connector Style

IEC 320-C14

Voltage Rated Dc

250V

Filter Type

Unfiltered - Commercial

Fuse Holder Drawer

Fuse Holder, Twin Fused

Voltage Rated Ac

250V

Flammability Rating

UL94 V-0

Din Conformance

NO

Orientation

Straight

Mil Conformance

NO

Gender

Male

Montaj Tipi

Panel Mount, Snap-In

Ambalaj

Bulk

Max Voltage Rating Ac

250V

Max Current Rating

10A

Özellikler

Voltage Selector

Material Flammability Rating

UL94 V-0

Onay Kuruluşu

CSA, ENEC, UL, VDE

Montaj

Panel, Snap in

RoHS Durumu

ROHS3 Compliant

Uzunluk

78.7mm

Panel Cutout Dimensions

Rectangular - 34.40mm x 76.50mm

Min. Çalışma Sıcaklığı

-40°C

Akım

15A

Panel Thickness

0.039 ~ 0.118 1.00mm ~ 3.00mm

Accomodates A Fuse

Yes (Fuse Not Included)

Kılıf / Paket

Module

Reach Svhc

No SVHC

Depth

66.6mm

Total Number Of Contacts

3

Yayın Yılı

2003

Pozisyon Sayısı

3

Fabrika Tedarik Süresi

24 Weeks

Maks. Çalışma Sıcaklığı

70°C

Connector Type

Receptacle, Male Blades - Module

Seri

Polysnap® BZV
