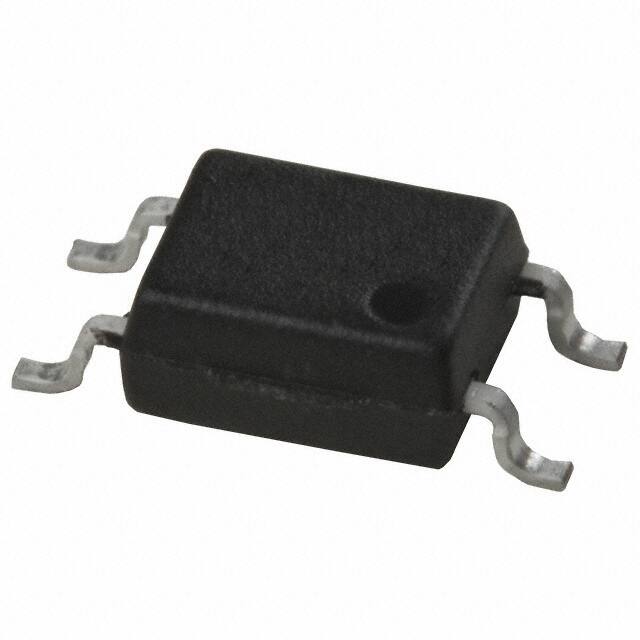

HCPL-181-000E

Teknik Özellikler

Max Collector Current

50mA

Fall Time Typ

18 μs

Yayın Yılı

2005

Pin Sayısı

4

Max Input Current

50mA

Max Output Voltage

80V

Max Power Dissipation

170mW

Turn On Delay Time

3 μs

Reverse Voltage Dc

6V

Montaj Tipi

Surface Mount

Collectoremitter Saturation Voltage

200mV

Terminal Kaplaması

Matte Tin (Sn)

Voltage Isolation

3750Vrms

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

ECCN Kodu

EAR99

Current Transfer Ratio Max

600% @ 5mA

Collector Emitter Voltage Vceo

200mV

Fabrika Tedarik Süresi

22 Weeks

Number Of Elements

1

Breakdown Voltage V

80V

Kurşunsuz

Lead Free

Çalışma Sıcaklığı

-55°C~100°C

Rise Time

4μs

Collectoremitter Breakdown Voltage

80V

Giriş Tipi

DC

Output Voltage

80V

Output Current Per Channel

50mA

Additional Feature

UL RECOGNIZED

Çıkış Tipi

Transistor

JESD-609 Kodu

e3

Configuration

SINGLE

Montaj

Surface Mount

Power Dissipation

170mW

Reach Svhc

No SVHC

Current Transfer Ratiomin

50% @ 5mA

Rise Fall Time Typ

4μs 3μs

Kılıf / Paket

4-SOIC (0.209, 5.30mm Width)

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No
