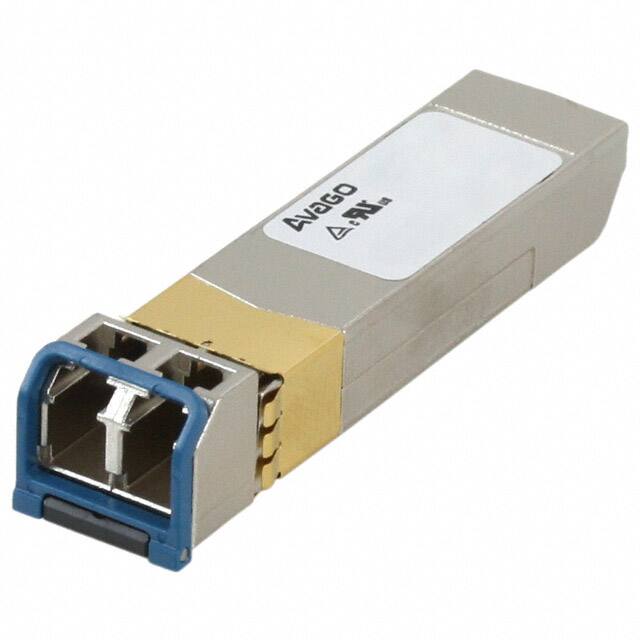

AFCT-57R5APZ

Teknik Özellikler

Besleme Gerilimi

3.3V

Return Lossmin

12 dB

Besleme Gerilimi

3.3V

Yüzey Montaj

NO

REACH Uyumluluk Kodu

compliant

Communication Standard

GBE

Operating Wavelengthnom

1310 nm

Yayın Yılı

2012

Body Breadth

13.4 mm

Mounting Feature

BOARD/PANEL MOUNT

Parça Durumu

Obsolete

Builtin Feature

AMPLIFIER

Body Length Or Diameter

55.3mm

Montaj Tipi

Pluggable, SFP

ECCN Kodu

5A991.B.5.A

Operating Temperature Max

85°C

Operating Temperature Min

-10°C

RoHS Durumu

RoHS Compliant

Connector Type

LC Duplex

Emitterdetector Type

LASER DIODE, PIN PHOTODIODE

Optical Power Outputnom

0.237mW

HTS Kodu

8517.62.00.50

Body Height

8.5mm

Applications

General Purpose

Data Rate

4.25Gbps

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fiber Optic Device Type

TRANSCEIVER
