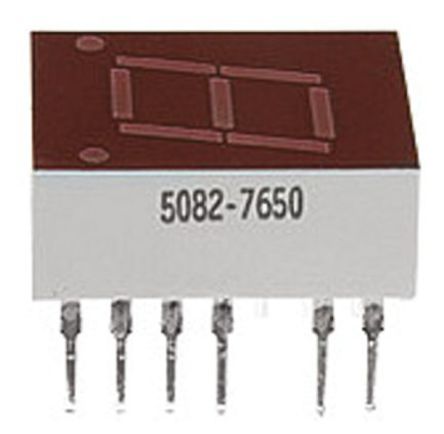

5082-7650-DE000

Teknik Özellikler

Boyut / Ölçü

0.750 Hx0.500W x 0.250 D 19.05mmx12.70mmx6.35mm

Display Type

7-Segment

Optoelectronic Device Type

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Digitalpha Size

0.43 11.00mm

RoHS Durumu

RoHS Compliant

Forward Currentmax

0.03A

Current Test

20mA

Operating Temperature Min

-40°C

JESD-609 Kodu

e1

Millicandela Rating

1.12mcd

Terminal Kaplaması

Tin/Silver/Copper (Sn/Ag/Cu)

REACH Uyumluluk Kodu

compliant

Number Of Characters

1

Kılıf / Paket

14-DIP (0.300, 7.62mm), 10 Leads

ECCN Kodu

EAR99

Ambalaj

Bulk

Yayın Yılı

2001

Parça Durumu

Obsolete

Voltage Forward Vf Typ

2.1V

Fonksiyon Sayısı

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Power Dissipation Max

105mW

Renk

Red

Wavelength Peak

635nm

Common Pin

Common Anode
